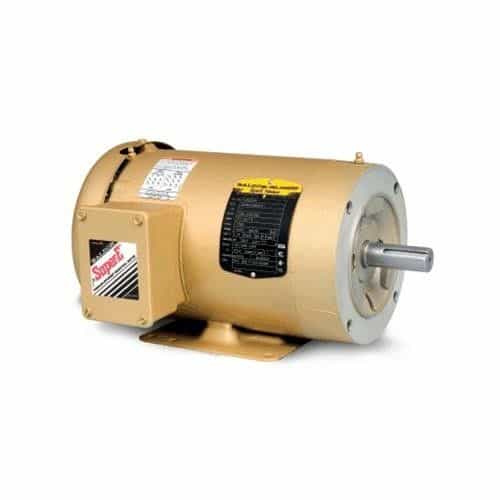

Baldor 5 HP Motor

Built for industrial applications, Baldor CEM3615T is a general-purpose motor from the Reliance line that can be used in multiple industries. Its frame is made of steel for strength and durability. This 5 HP Baldor motor can run at a maximum speed of 1750 RPM. Common uses in the car wash industry - compressors, pumps, fans, conveyors, and more. This 3-phase motor is designed around NEMA premium efficiency standards with class F insulation.

Specifications:

• Catalog Number: CEM3615T
• Enclosure: TEFC
• Frame: 184TC
• Frame Material: Steel
• Frequency: 60.00 Hz
• Output @ Frequency: 5.000 HP @ 60 HZ
• Phase: 3
• Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
• Voltage @ Frequency: 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
• XP Class and Group: None
• XP Division: Not Applicable
• Agency Approvals: UR, CSA EEV, CSA
• Ambient Temperature: 40 °C
• Auxillary Box: No Auxillary Box
• Auxillary Box Lead Termination: None
• Base Indicator: Rigid
• Bearing Grease Type: Polyrex EM (-20F +300F)
• Blower: None
• Current @ Voltage: 13.400 A @ 230.0 V, 13.900 A @ 208.0 V, 6.700 A @ 460.0 V
• Design Code: B
• Drip Cover: No Drip Cover
• Duty Rating: CONT
• Efficiency @ 100% Load: 89.5 %
• Electrically Isolated Bearing: Not Electrically Isolated
• Feedback Device: NO FEEDBACK
• High Voltage Full Load Amps: 6.7 a
• Front Face Code: Standard
• Front Shaft Indicator: None
• Heater Indicator: No Heater
• Insulation Class: F
• Inverter Code: Inverter Ready
• KVA Code: J
• Lifting Lugs: No Lifting Lugs
• Locked Bearing Indicator: Locked Bearing
• Motor Lead Exit: Ko Box
• Motor Lead Termination: Flying Leads
• Motor Lead Quantity/Wire Size: 9 @ 16 AWG
• Motor Type: 3642M
• Mounting Arrangement: F1
• Number of Poles: 4
• Overall Length: 18.05 IN
• Power Factor: 78
• Product Family: General Purpose
• Pulley End Bearing Type: Ball
• Pulley Face Code: C-Face
• Pulley Shaft Indicator: Standard
• Rodent Screen: None
• Service Factor: 1.15
• Shaft Diameter: 1.125 IN
• Shaft Extension Location: Pulley End
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Rotation: Reversible
• Shaft Slinger Indicator: No Slinger
• Speed: 1750 rpm
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Method: Direct on line
• Thermal Device - Bearing: None
• Thermal Device - Winding: None
• Vibration Sensor Indicator: No Vibration Sensor
• Winding Thermal 1: None
• Winding Thermal 2: None

Product Features:

• Suitable for mounting in any position
• Ball bearings
• Heavy-gauge steel or cast-iron frames, and gasketed conduit boxes
• EM Super-E¨ motors have NEMA Premium¨ efficiency, Class F insulation, 1.15 service factor
• Motors with TR suffix have roller bearings for heavy belted loads
