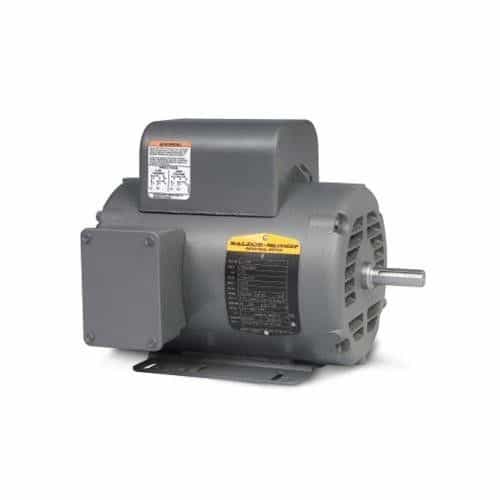

Baldor Motors 3 HP, 1 Phase, Encl ODP, Frame 184T
Brand:
Mfr. Model #:
L1408T
KR Part #:
MBL1408T
Weight:
77.00 lbs
GTIN:
781568101605
(1)Baldor 3 HP motor for a variety of applications like compressors, pumps, conveyors, fans, machine tools and air conditioning units. This single-phase electric motor has a 184T frame, dynamically balanced rotors, an ODP enclosure, and heavy gauge steel construction. 115/230V AC, 1725 maximum RPM, 32/16 Amps.
Prop 65
Technical Specifications
Shaft Diameter: 1 1/8"
Amps: 16
Horsepower: 3.0
Voltage AC: 115/230
RPM: 1725
Phase: Single
Max Temperature: 104 degrees F
Product Description
Baldor 3 HP Motor
The Baldor L1408T is a 3 horsepower electric motor with a 1 1/8" reversible rotation shaft. It has a steel frame, flying leads, and pulley end ball bearings. Quality motor for general purpose applications!
L1408T Details
- 3 HP
- 1725 RPM
- 1 phase
- 60 Hz
- 184T frame
- ODP (open drip-proof) enclosure
- 115/230 AC voltage
- 32/16 Amps
- Insulation class F
- Service factor 1.15
- 3634LC motor
- Overall Length: 15"
- Copper windings
- Rotors dynamically balanced
- Ball bearings
- Heavy gauge steel frame construction
- Agency approvals: CSA, UR
