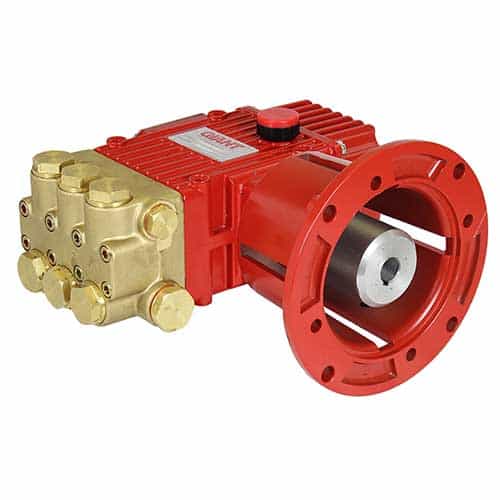

Giant Pump P218RE1D Triplex Plunger Pump, 3.4 GPM, 2500 PSI, Right Shaft, Electric Motor
Brand:
Mfr. Model #:
P218RE1D
KR Part #:
PUP218E1D
Weight:
15.00 lbs
Manuals
(0)This pump features solid ceramic plungers and stainless steel valves for durability. NEMA 56C electric motor flange for direct drive.
Technical Specifications
Max GPM: 3.4
Max PSI: 2500
Max Temperature: 160 degrees F
RPM: 1750
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Bore: 18 millimeter
Stroke: 10 millimeter
Crankcase Capacity: 7.5 oz
Shaft Diameter: 24 millimeter
Product Description
2500 PSI Right Mounted Plunger Pump
The Giant P218RE1D high-pressure pump has a right-side mounted shaft and 18 mm ceramic plungers. This high-quality positive displacement plunger pump has a maximum flow rate of 3.4 GPM, a maximum pressure of 2500 PSI, and a 1750 RPM crankshaft speed. Features NEMA 56C flange for electric motor direct drive, and 7/8" aluminum coupler. Giant positive displacement pumps are reliable options for high-pressure water systems at car washes, vehicle dealers, and auto detailing shops.
Specifications:
- Nominal/Intermittent pressure: 2000/2500 PSI
- Maximum temperature: 160° F
- Plunger diameter: 0.71"
- Stroke: 0.39"
- Crankshaft diameter: 24 mm
- Inlet ports: (2) 1/2" BSP
- Discharge ports: (2) 3/8" BSP
- Crankcase oil capacity: 7.5 fl. oz.
- Volumetric Efficiency @ 1750 RPM: 0.94
- Volumetric Efficiency @ 3450 RPM: 0.87
- Mechanical Efficiency @ 3450 RPM: 0.86
- Power required: 4.7/5.9 BHP
Repair Kits:
- Plunger Packing Kit (09164)
- Valve Assembly Kit (09116)
- Oil Seal Kit (09144)
- Teflon Plunger Packing Kit (09164-0021)
- Viton Seal Kit (09164-0011)
- High Temperature Seal Kit (09599)
