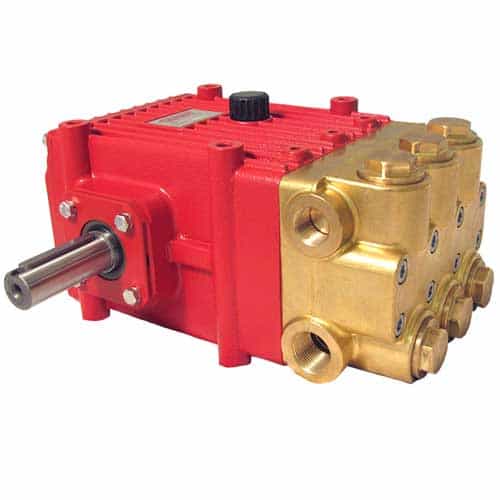

Giant P536L Triplex Pump, 26.4 GPM, 1740 PSI, 1450 RPM, Left Side Shaft
Brand:
Mfr. Model #:
P536L
KR Part #:
PUP536L
Weight:
93.00 lbs
Manuals
(0)German-made Giant P536 Pump, left side shaft. Rugged aluminum crankcase pump with bronze connecting rods and solid ceramic plungers. 26.4 GPM max, at up to 1740 PSI.
Freight Only
Technical Specifications
Max GPM: 26.4
Max PSI: 1740
Max Temperature: 104 degrees F
RPM: 1450
Inlet Port: 1 inch
Outlet Port: 3/4 inch
Bore: 36 millimeter
Stroke: 24 millimeter
Shaft Diameter: 30 millimeter
Product Description
Giant Pump P536 Pump - Left Shaft
The P536 Giant Pump features an aluminum crankcase with sight glass and vented dipstick. Crankshaft is forged and through-hardened for heightened reliability. Also features bronze connecting rods, hardened stainless steel plunger bases, solid ceramic plungers, nitrile seals (with fabric reinforcing), stainless steel valves, and forged brass manifold.
Features:
- Shaft Rotation: Top of Pulley Towards Manifold
- Manifold: Forged Brass
- Plungers: Solid Ceramic Oxide
- Valves: High Grade Stainless Steel
- Seals: Nitrile with Fabric Reinforcing
- Gear End: Aluminum
- Left side crankshaft
Specifications:
- Max Flow: 26.4 GPM (100 L/min)
- Max Discharge Pressure: 1740 PSI (120 bar)
- RPM: 1450 RPM
- Plunger Diameter: 1.42" (36 mm)
- Stroke: 0.94" (24 mm)
- Max Temp: 104° F (40° C)
- Crankshaft Diameter: 1.18" (30 mm)
- NPSHR: 26.9 ft. of Head (8.2 mWs)
- Inlet Ports: (2) 1" BSP
- Discharge Ports (2) 3/4" BSP
