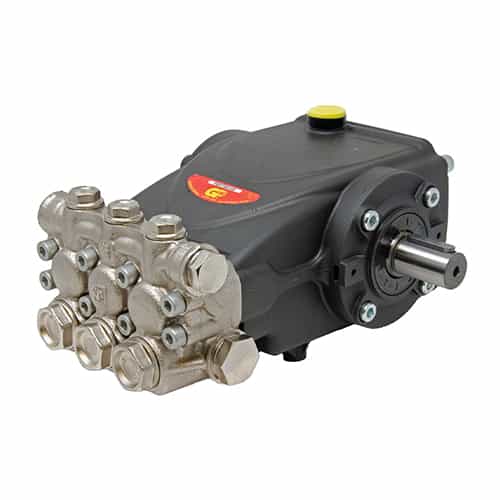

General PEHT2010SR Emperor Pump Right Shaft 4 GPM, 3000 PSI
Brand:
Mfr. Model #:
PEHT2010SR
KR Part #:
GPEHT2010SR
Weight:
21.00 lbs
GTIN:
682491124955
(0)Perfect for your car wash and
Technical Specifications
RPM: 1750
Bore: 20 millimeter
Crankcase Capacity: 22 ounce
Horsepower: 8.2
Inlet Port: 1/2 inch
Max GPM: 4
Max PSI: 3000
Shaft Diameter: 24 millimeter
Stroke: 10 millimeter
Max Temperature: 185 degrees F
Product Description
Platinum Emperor Series Pump 4 GPM, 1750 RPM
This PEHT2010SR General Pump Platinum Emperor Pump features patented high tech packings. The packings include a dynamic low-pressure seal retainer, low-pressure seal, intermediate ring, and high-pressure seal. This pump also has solid ceramic plungers, a forged stainless steel manifold, a nickel-plated crankcase, dual diameter plunger guide and heavy-duty tapered roller bearings.
Dimensions: 10.4" x 8.8" x 5.4"
- Dual lip oil seal
- Increased sliding surface of the plunger guide provides stability, reduced
friction, and reduced wear - Optimized outlet valves
- Special seals for temperatures up to 185 F
- Plunger fastening system eliminates the risk of pressure build-up
- Large diameter sight glass
- Oversized connecting rods and large oil capacity for excellent cooling and lubrication
- Dust protection chamber between crankcase and manifold
- Made in Italy
