General Pump TC1802E175L 60 Series 5/8 in. Hollow Shaft Electric Pump - .5 GPM, 2200 PSI, Left Shaft

Brand:
General Pump
Mfr. Model #:
TC1802E175L
KR Part #:
GPTC1802E175L
Weight:
15.10 lbs
Call For Availability
MSRP
$929.93
Now Only!
$317.54
starstarstarstarstar (0)

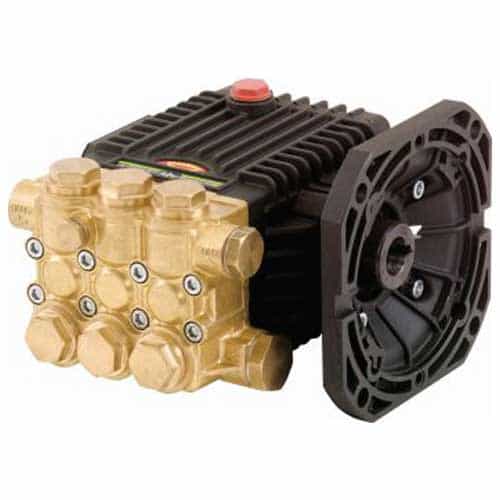

This 60 Series pump is flanged for direct couple to electric motors (NEMA 56C). Note: picture shows right shaft, but this is a left hand pump.
More Info...



Technical Specifications

RPM: 1750
Bore: .709 in / 18 mm
Bore: 18 millimeter
Crankcase Capacity: 11.8 ounce
Shaft Diameter: 16 millimeter
Stroke: 2 millimeter
Max Temperature: 165 degrees F
Max PSI: 2200
Max GPM: .5
Inlet Port: 1/2 inch
Horsepower: .8

Product Description

5/8" Hollow Shaft - Electric - 60 Series Pressure Cleaning Pump

This General Pump TC1802E175L triplex plunger pump has a left shaft and compact design. It features oversized bearings and a new generation seal system for long life. Its forged brass manifold is durable and both heat- and chemical-resistant.


Dimensions: 7.8" x 7.3" x 5.5"

  • Max Volume: 0.5 GPM
  • Max Discharge Pressure: 2200 PSI
  • Max Inlet Pressure: 125 PSI
  • Minimum Inlet Pressure: 3 ft. water
  • See more specs under the Specifications tab
