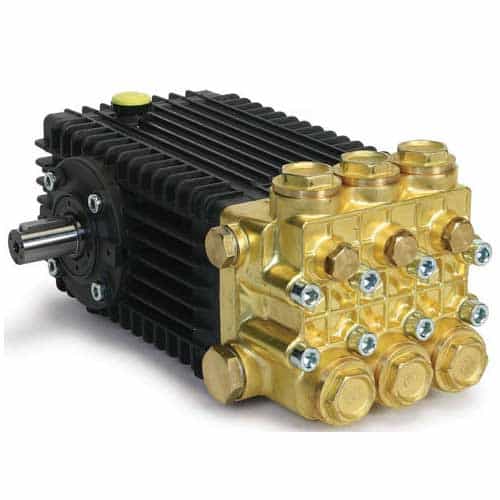

General Pump TSF1819L 66 Series High FLow Solid Shaft Pump - 6.3 GPM, 4350 PSI, Left Shaft

Brand:
General Pump
Mfr. Model #:
TSF1819L
KR Part #:
GPTSF1819L
Weight:
40.70 lbs
GTIN:
682491071037
Call For Availability
MSRP
$2,478.45
Now Only!
$846.31
starstarstarstarstar (0)
This is a TSF high flow pump from General Pumps. Uses GP Series 100 oil.
More Info...



Technical Specifications

RPM: 1750
Bore: 18 millimeter
Crankcase Capacity: 40.6 ounce
Horsepower: 18.8
Inlet Port: 3/4 inch
Max GPM: 6.3
Shaft Diameter: 24 millimeter
Stroke: 19 millimeter
Max PSI: 4350

Product Description

24 mm Solid Shaft 66 Series Pressure Cleaning Pump

This General Pump TSF1819L pump has a left shaft. It features oversized roller bearings and a fully anodized crankcase. Its innovative seal is designed for extended seal life. The plunger design improves thermal shock resistance, while the valve cap improves hydrostatic performance.

Dimensions: 14.94" x 9.78" x 6.99"

  • Max Volume: 6.3 GPM
  • Max Discharge Pressure: 4350 PSI
  • Max Pump Speed: 1750 RPM
  • Max Inlet Pressure: 125 PSI
  • Max Inlet Vacuum: 9 ft. water
  • UPC: 682491071037
  • See more specs under Specifications tab
