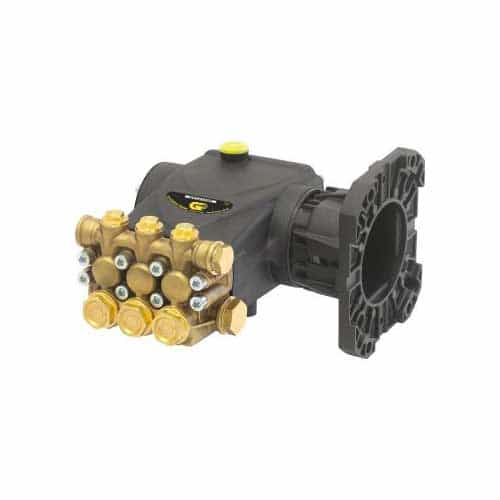

General Pump EP1313S17 Triplex Plunger Pump, Solid Shaft, 2.4 GPM, 4000 PSI

Brand:
Mfr. Model #:
EP1313S17
KR Part #:
GPEP1313S17
Weight:
15.40 lbs
GTIN:
682491065982
Call For Availability
MSRP
$995.00
Now Only!
$339.75
starstarstarstarstar (0)
This General Pump triplex plunger pump features a new generation seal system that allows for a longer life. Housed in forged brass manifold for improved working pressure. 2.4 GPM flow, at pressures up to 4000 PSI.



Technical Specifications

Max PSI: 4000
Max GPM: 2.4
Max Temperature: 165 degrees F
RPM: 1750
Bore: 13 millimeter
Stroke: 13 millimeter
Shaft Diameter: 24 millimeter
Crankcase Capacity: 15 oz.
Inlet Port: 1/2 inch

Product Description

4000PSI General Pump

Triplex plunger pump featuring advanced forged brass manifold for increased working pressure. Solid ceramic plungers with innovative dual guide system and guide bushing for superior performance. 24 mm solid shaft.

Dimensions: 9.5" X 8.38 X 5.1"

  • Triplex Plunger Pump.
  • Advanced forged brass manifold, increases working pressure to 4,000 PSI.
  • Patent/pending plunger guide bushing
  • Solid ceramic plungers with an innovative dual guide system.
  • Optimized outlet valves
  • New dual lip oil seal.

Specifications:

  • Max Volume: 2.4 GPM
  • Max Discharge Pressure: 4000 PSI
  • Max Pump Speed: 1750 RPM
  • Max Inlet Pressure: 125 PSI
  • Max Temperature: 165°F
