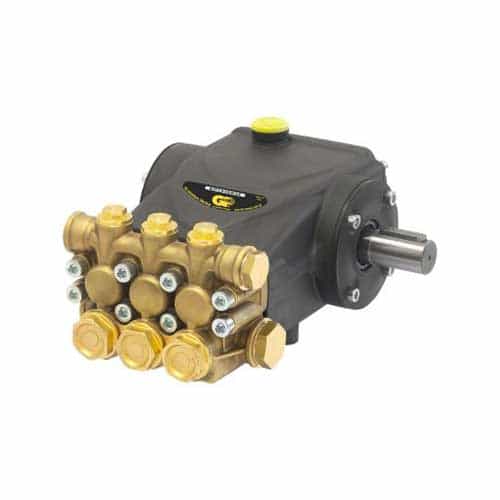

General Pump EP1506S34 Solid Shaft Pump - 2.9 GPM, 3045 PSI, 3400 RPM, 6 EBHP

Brand:
Mfr. Model #:
EP1506S34
KR Part #:
GPEP1506S34
Weight:
15.40 lbs
GTIN:
682491066002
Call For Availability
MSRP
$995.00
Now Only!
$339.75
starstarstarstarstar (0)
This General Pump has a new generation seal system that allows for a longer life.



Technical Specifications

Max PSI: 3045
RPM: 3400
Bore: 15 millimeter
Crankcase Capacity: 15 ounce
Shaft Diameter: 24 millimeter
Stroke: 6 millimeter
Max Temperature: 165 degrees F
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch

Product Description

3045PSI General Pump

Dimensions: 9.5" X 8.38 X 5.1"

  • Triplex Plunger Pump.
  • Advanced forged brass manifold, increases working pressure to 4,000 PSI.
  • Patent/pending plunger guide bushing
  • Solid ceramic plungers with an innovative dual guide system.
  • Optimized outlet valves
  • New dual lip oil seal.

Specifications:

  • Max Volume: 2.9GPM
  • Max Discharge Pressure: 3045PSI
  • Max Pump Speed: 3400RPM
  • Max Inlet Pressure: 125 PSI
  • See more under the Specifications tab
