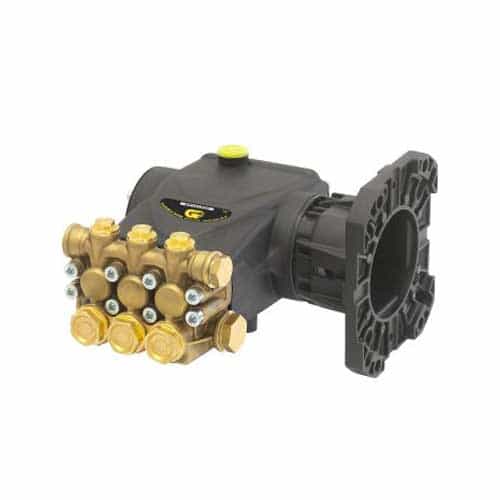

General Pump EP1509G8 Hollow Shaft Triplex Plunger Pump - EP Series, 3000 PSI, 3.7 GPM, 3400 RPM, 11.4 HP

Brand:
Mfr. Model #:
EP1509G8
KR Part #:
GPEP1509G8
Weight:
15.90 lbs
GTIN:
682491066156
Call For Availability
MSRP
$995.00
Now Only!
$339.75
starstarstarstarstar (0)
A gas flanged triplex plunger pump. Features ceramic plungers with a dual guide system. Endures a maximum pressure of 3000 PSI.



Technical Specifications

Max PSI: 3000
RPM: 3400
Bore: 15 millimeter
Crankcase Capacity: 15 ounce
Inlet Port: 1/2 inch
Max Temperature: 165 degrees F
Shaft Diameter: 1 inch
Stroke: 9 millimeter

Product Description

Gas Flanged Pump

General Pump's EP1509G8 is a pump designed with a 1-inch hollow shaft that is flanged for coupling with (SAE J609B) gas powered engines. Equipped with ceramic plungers that feature a new dual guide system. Forged brass manifold withstands a maximum pressure of 3000 PSI. Handles a maximum flow rate of 3.7 GPM.

Specifications:


  • Maximum Volume: 3.7 GPM

  • Maximum Discharge Pressure: 3,000 PSI

  • Horsepower: 11.4 GHP

  • Maximum Pump Speed: 3400 RPM

  • Maximum Inlet Pressure: 125 PSI

  • Max. Inlet Vacuum: Flooded

  • Plunger Bore: .591 in/15 mm

  • Plunger Stroke: .354 in./9mm

  • Oil Capacity: 15 oz.

  • Maximum Fluid Temperature: 165° F

  • Inlet Port Thread: 1/2"-14 BSP-F

  • Discharge Port: Thread 3/8"-19 BSP-F

  • Shaft Diameter: 1 in./25.4 mm

  • Weight: 15.90 lbs.


UPC:


  • GTIN: 682491066156
