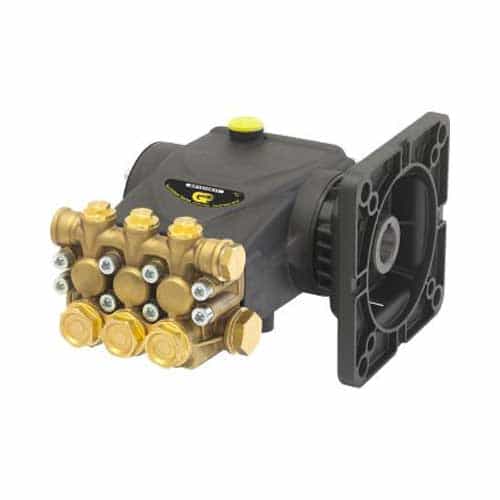

General Pump EP1510E17 Hollow Shaft Electric Flange Triplex Plunger Pump - 2.4 GPM, 3045 PSI, 1750 RPM

Brand:
Mfr. Model #:
EP1510E17
KR Part #:
GPEP1510E17
Weight:
15.80 lbs
GTIN:
682491066088
Call For Availability
MSRP
$995.00
Now Only!
$339.75
starstarstarstarstar (0)
This General Pump triplex plunger pump features a new generation seal system that allows for a longer life. Housed in forged brass manifold for improved working pressure. 2.4 GPM flow, at pressures up to 3045 PSI.



Technical Specifications

Max PSI: 3045
RPM: 1750
Max GPM: 2.4
Max Temperature: 165 degrees F
Bore: 15 millimeter
Stroke: 10 millimeter
Shaft Diameter: 1 1/8 inch
Crankcase Capacity: 15 oz.
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch

Product Description

3045 PSI General Pump

Triplex plunger pump featuring advanced forged brass manifold for increased working pressure. Solid ceramic plungers with innovative dual guide system and guide bushing for superior performance. 1-1/8" hollow shaft, flanged for direct couple to electric motors.

Dimensions: 9.5" X 8.38" X 5.1"

  • Triplex Plunger Pump.
  • Advanced forged brass manifold, increases working pressure.
  • Patent/pending plunger guide bushing
  • Solid ceramic plungers with an innovative dual guide system.
  • Optimized outlet valves
  • New dual lip oil seal.

Specifications:

  • Max Volume: 2.4 GPM
  • Max Discharge Pressure: 3045 PSI
  • Max Pump Speed: 1750 RPM
  • Max Inlet Pressure: 125 PSI
  • Inlet Port: 1/2" BSP-F
  • Outlet Port: 3/8" BSP-F
