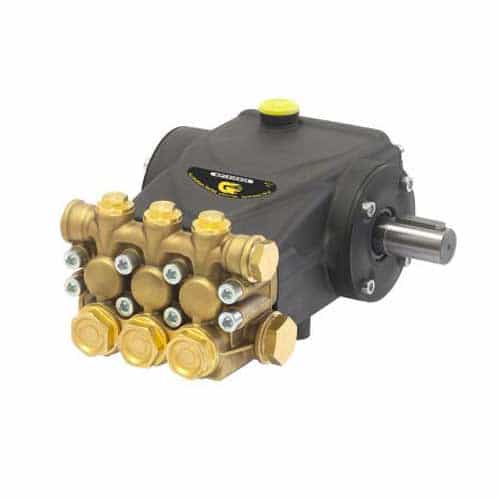

General Pump EP1510S34 Evolution EP Series Triplex Plunger Pump - 4.2GPM, 3045PSI

Brand:
Mfr. Model #:
EP1510S34
KR Part #:
GPEP1510S34
Weight:
15.40 lbs
GTIN:
682491066026
Call For Availability
MSRP
$995.00
Now Only!
$339.75
starstarstarstarstar (0)
This General Pump has a new generation seal system that allows for a longer life. Max flow of  4.2 GPM and a max pressure or 3045 PSI. This 7.1 HP pump operates at up to 3400 RPM. Features a right side solid shaft.



Technical Specifications

Max PSI: 3045
RPM: 3400
Bore: 15 millimeter
Crankcase Capacity: 15 ounce
Inlet Port: 1/2 inch
Max Temperature: 165 degrees F
Shaft Diameter: 24 millimeter
Stroke: 10 millimeter

Product Description

Evolution Series Plunger Pump

Evolution EP Series Triplex Plunger Pumps have advanced features, the next generation for high pressure industrial pup applications.  Enhancements include a forged brass manifold, patent pending plunger guide bushing, new plunger fastening system, optimized outlet valves, solid ceramic plungers, duali lip oil seal and a dual diameter plunger guide!

Dimensions: 9.5" X 8.38 X 5.1"
Specifications:

  • Max Volume: 4.2GPM
  • Max Discharge Pressure: 3045PSI
  • Max Pump Speed: 3400RPM
  • Max Inlet Pressure: 125 PSI
  • Max temp: 165 degrees F
  • Solid 24 mm shaft
  • Horsepower: 7.1
  • Oil capacity: 15oz.
  • Plunger bore: 15mm
  • Stroke: 8mm
  • 100% Made in Italy
