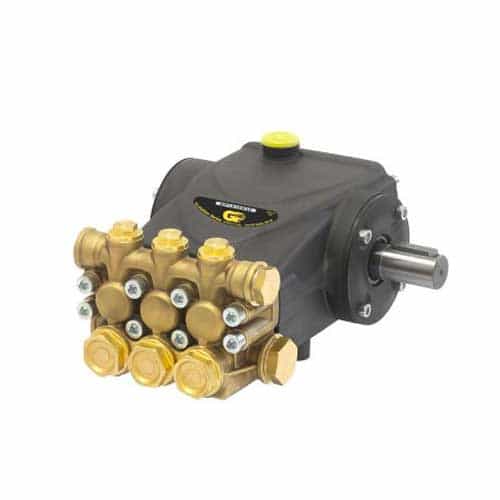

General Pump EP1811S17 Solid Shaft Pump, 3.7 GPM, 2500 PSI, 1750 RPM, 6.3 EBHP
Brand:
Mfr. Model #:
EP1811S17
KR Part #:
GPEP1811S17
Weight:
15.40 lbs
GTIN:
682491065951
Availability:
6
(0)This General Pump triplex plunger pump features a new generation seal system that allows for a longer life. Housed in forged brass manifold for improved working pressure. 3.7 GPM flow, at pressures up to 2500 PSI.
Technical Specifications
Max PSI: 2500
RPM: 1750
Crankcase Capacity: 15
Bore: 18 millimeter
Shaft Diameter: 24 millimeter
Stroke: 11 millimeter
Max Temperature: 165 degrees F
Inlet Port: 1/2 inch
Product Description
General Pump EP Series 2500 PSI Pump
Triplex plunger pump featuring advanced forged brass manifold for increased working pressure. Solid ceramic plungers with innovative dual guide system and guide bushing for superior performance. New optimized outlet valves combine with a long-lasting life warranty for reliable service. 25.4 mm hollow shaft, flanged for direct couple to gasoline engines.
Dimensions: 9.5" X 8.38 X 5.1"
- Triplex Plunger Pump.
- Advanced forged brass manifold, increases working pressure to 4,000 PSI.
- Patent/pending plunger guide bushing
- Solid ceramic plungers with
innovative - Optimized outlet valves
- New dual lip oil seal.
Specifications:
- Max Volume: 3.7 GPM
- Max Discharge Pressure: 2500 SI
- Max Pump Speed: 1750 RPM
- Inlet Port: 1/2"-14 BSP-F
- Outlet Port: 3/8"-19 BSP-F
- See more under the Specifications tab
