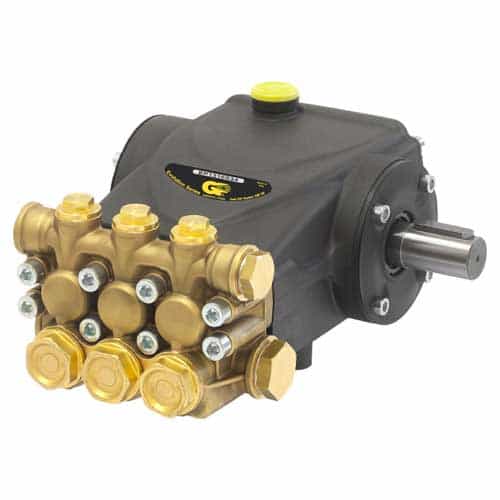

General Pump EP1813S17 Solid Shaft Plunger Pump, 4.2 GPM, 2900 PSI, 1750 RPM, Right Shaft

Brand:
Mfr. Model #:
EP1813S17
KR Part #:
GPEP1813S17
Weight:
15.40 lbs
GTIN:
682491065975
Availability:
1
Low Stock Warning
MSRP
$995.00
Now Only!
$339.75
starstarstarstarstar (0)
This General Pump triplex plunger pump features a new generation seal system that allows for a longer life. Housed in forged brass manifold for improved working pressure. 4.2 GPM flow, at pressures up to 2900 PSI. All pumps are required to have a primary regulating device as well as a secondary pressure safety relief device.



Technical Specifications

Max PSI: 2900
RPM: 1750
Bore: 18 millimeter
Crankcase Capacity: 15 ounce
Inlet Port: 1/2 inch
Max Temperature: 165 degrees F
Shaft Diameter: 24 millimeter
Stroke: 13 millimeter

Product Description

2900 PSI General Pump

This EP series pump is a triplex plunger pump that has a solid ceramic plunger with a dual guide system. Advanced forged brass manifold provides for increased working pressure. Solid ceramic plungers with innovative dual guide system and guide bushing for superior performance. This pump has large, lightweight connecting rods with long-life low and high-pressure seals. 24 mm solid shaft.

Dimensions: 9.5" x 8.38" x 5.1"

  • Triplex Plunger Pump.
  • Advanced forged brass manifold, increases working pressure to 4,000 PSI.
  • Patent/pending plunger guide bushing
  • Solid ceramic plungers with an innovative dual guide system.
  • Optimized outlet valves
  • New dual lip oil seal.

Specifications:

  • Max Volume: 4.2 GPM
  • Max Discharge Pressure: 2900 PSI
  • Max Pump Speed: 1750 RPM
  • Max Inlet Pressure: 125 PSI
  • Inlet Port: 1/2"-14 BSP-F
  • Outlet Port: 3/8"-19 BSP-F
  • See more under the Specifications tab
