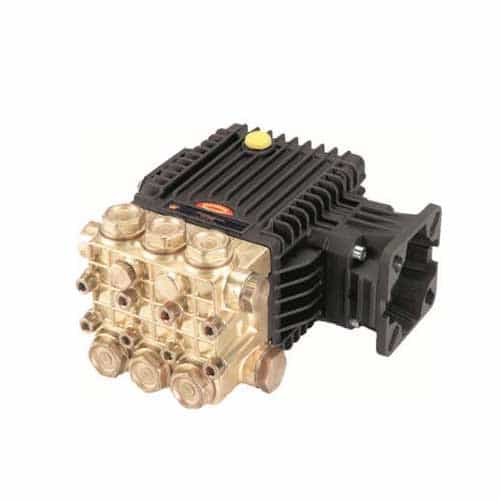

General Pump TP2533J34 Plunger Pump - 3.3 GPM, 2500 PSI, 3400 RPM, 8 mm Stroke

Brand:
Mfr. Model #:
TP2533J34
KR Part #:
GPTP2533J34
Weight:
11.40 lbs
GTIN:
682491119364
Call For Availability
MSRP
$890.74
Now Only!
$304.15
starstarstarstarstar (0)
This General Pump has a new generation seal system that allows for a longer life. High-volume, mid-pressure pump built for rigorous duty cycles, high temperatures, and chemicals.



Technical Specifications

Max PSI: 2500
RPM: 3400
Bore: 15 millimeter
Stroke: 8 millimeter
Shaft Diameter: 3/4 inch
Max Temperature: 165 degrees F
Inlet Port: 3/8 inch
Crankcase Capacity: 11.2 ounce

Product Description

3400 PSI General Pump

This General Pump TP series pump is a triplex plunger pump that has a solid ceramic plunger with a dual guide system. New optimized outlet valves and new generation seal system that allows for a longer life. High-volume, mid-pressure pump built for rigorous duty cycles, high temperatures, and chemicals.


Dimensions: 7.0" x 7.2 x 5.1"

  • Triplex Plunger Pump
  • Forged brass manifold
  • Die/cast, anodized aluminum oil/bath crankcase.
  • Unitized, stainless steel inlet and outlet valves.
  • Ideal for all general cleaning and misting applications.

Specifications:

  • Max Volume: 3.3GPM
  • Max Discharge Pressure: 2500PSI
  • Max Pump Speed: 3400RPM
  • Max Inlet Pressure: 125 PSI
  • See more under the Specifications tab
