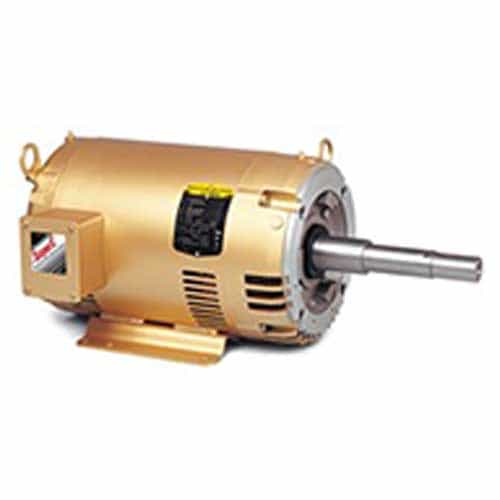

General Purpose Three Phase Motor

Engineered for harsh applications such as those found in car washes. The motor frame is crafted with steel. Able to be use in multiple applications being designed as a general-purpose motor. Provides NEMA premium efficiency and is ROHS compliant. The motor's efficiency at 100% load is 86.5 % efficient. Outputs 5 horsepower, runs at 3450 RPM and covers 3 phases.

Specification:

• Enclosure: OPSB
• Frame: 182JM
• Frame Material: Steel
• Frequency: 60.00 Hz
• Phase: 3
• Speed: 3450 rpm
• Output @ Frequency: 5.000 HP @ 60 HZ
• Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
• Voltage @ Frequency: 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
• XP Class and Group: None
• XP Division: Not Applicable
• Agency Approvals: UR, CSA EEV, CSA
• Ambient Temperature: 40 °C
• Auxillary Box: No Auxillary Box
• Auxillary Box Lead Termination: None
• Base Indicator: Rigid
• Bearing Grease Type: Polyrex EM (-20F +300F)
• Blower: None
• Current @ Voltage: 12.000 A @ 230.0 V, 12.800 A @ 208.0 V, 6.000 A @ 460.0 V
• Design Code: A
• Drip Cover: No Drip Cover
• Duty Rating: Continued
• Efficiency @ 100% Load: 86.5 %
• Electrically Isolated Bearing: Not Electrically Isolated
• Feedback Device: NO FEEDBACK
• High Voltage Full Load Amps: 6.0 a
• Front Face Code: Standard
• Front Shaft Indicator: None
• Heater Indicator: No Heater
• Insulation Class: F
• Inverter Code: Inverter Ready
• KVA Code: K
• Lifting Lugs: No Lifting Lugs
• Locked Bearing Indicator: Locked Bearing
• Motor Lead Exit: Ko Box
• Motor Lead Termination: Flying Leads
• Motor Lead Quantity/Wire Size: 9 @ 16 AWG
• Motor Type: 3622M
• Mounting Arrangement: F1
• Number of Poles: 2
• Overall Length: 15.12 IN
• Power Factor: 91
• Product Family: General Purpose
• Pulley End Bearing Type: Ball
• Pulley Face Code: C-Face
• Pulley Shaft Indicator: Tapped & Key
• Rodent Screen: Included
• RoHS Status: ROHS COMPLIANT
• Service Factor: 1.15
• Shaft Diameter: 0.875 IN
• Shaft Extension Location: Pulley End
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Rotation: Reversible
• Shaft Slinger Indicator: Shaft Slinger
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Method: Direct on line
• Thermal Device - Bearing: None
• Thermal Device - Winding: None
• Vibration Sensor Indicator: No Vibration Sensor
• Winding Thermal 1: None
• Winding Thermal 2: None
