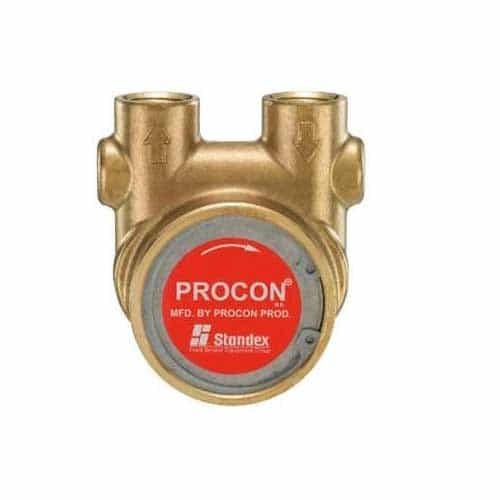

Procon 104E215F11BC Series 4 Brass Bolt-On Positive Displacement Rotary Vane Pump - 215 GPH, 99 PSI, 1725 RPM

Brand:
Mfr. Model #:
104E215F11BC
KR Part #:
PP2506XH
Weight:
4.00 lbs
Usually Ships in 3 Weeks
MSRP
$245.01
Now Only!
$167.81
starstarstarstarstar (0)
This Procon rotary vane pump operates with minimal vibration and pulsation. Constructed with brass. Handles a maximum flowrate of 215 GPH.
Prep 65

Prop 65




Technical Specifications

Max GPM: 3.6
Max PSI: 99
RPM: 1725
Inlet Port: 1/2 inch
Outlet Port: 1/2 inch

Product Description

Bolt-On Pump

Procon's 104E215F11BC is a clamp-on Series 4 positive displacement rotary vane pump is capable of self-priming in water with a 6 ft. maximum lift. This pump is equipped with 3/8 NPT inlet and outlet ports. Engineered to produce lower vibration and pulsation levels. Ideal for use in carbonation, espresso/coffee, welding, cold carb circulation, reverse osmosis, beer chillers, pesticide systems, and solar applications.

Specifications:

  • Product Classification: Rotary Vane Pump
  • Agency Approvals: Non-Food Grade (1.5% Max. Lead)- No Agency Approval
  • Series: Series 4 Brass
  • Mounting and Drive Configuration: Bolt-On With Single Flat Drive
  • Flowrate: 215 GPH
  • Elastomer: FDA Grade Nitrile - Type 21 or Type 2106 Used Interchangeably
  • Rotation / Slinger / Passivation / Strainer: Clockwise
  • Clearances: Standard Clearance
  • Valve Type and Configuration: Plastic, Hi Temp-Solid
  • Pressure Range: 60 TO 99 PSI - Default Setting 99 PSI
  • Body Material Type: Brass
  • Nominal Speed: 1725 RPM
  • Typical Horsepower Required: .25 To .50 HP
  • Rotation (Viewed from Nameplate End): Clockwise
  • Dry Weight: Approximately 2.5 Lbs.
  • Dimensions: 3.56" X 3.49" X 3.86"
  • Self-Priming (Water): 6 Ft. Maximum Lift
  • Port Size: 3/8 NPT Inlet and Outlet

Applications:

  • Carbonation
  • Espresso/Coffee
  • Welding
  • Cold Carb Circulation
  • Reverse Osmosis
  • Beer Chillers
  • Pesticide Systems
  • Solar Applications


WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
