Versa-Matic E5AA5T559C Aluminum E-Series Bolted Air Diaphragm Pump with PTFE - 1/2 in. Ports, 11 GPM

Brand:
Versa-Matic
Mfr. Model #:
E5AA5T559C
KR Part #:
VME5AT
Weight:
11.00 lbs
GTIN:
814338026270
Usually Ships in 2 Weeks
MSRP
$1,659.60
Now Only!
$1,255.92
starstarstarstarstar (0)
Aluminum-body double diaphragm pump operated by air power.
More Info...



Technical Specifications

Inlet Port: 1/2 inch
Max GPM: 11
Max PSI: 125
Max Temperature: 220 degrees F

Product Description

Aluminum Body PTFE Diaphragm Pump - 1/2" Suction/Discharge

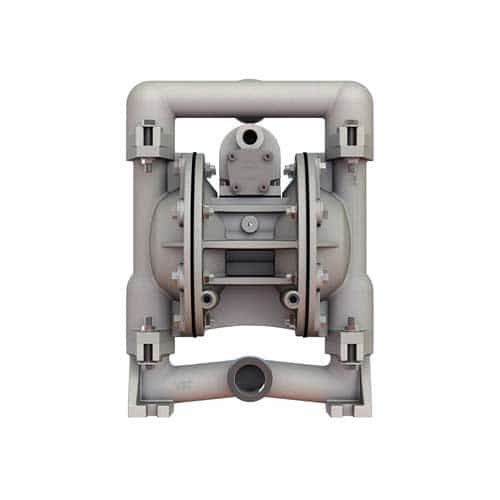

The Versa-Matic E5AA5T559C pump is an air-powered double diaphragm pump made with aluminum and PTFE inner components. It has a 1/2" NPT suction inlet, a 1/2" NPT discharge outlet, and a max flow rate of 11 GPM. Reliably and safely transfer fluids and chemicals with this corrosion-resistant pump with bolted leak-free construction.

  • Maximum Flow Rate: 11 GPM
  • Suction Port: 1/2" NPT
  • Discharge Port: 1/2" NPT
  • Aluminum construction body
  • Maximum Discharge Pressure: 125 PSI
  • Maximum Temperature: 220° Fahrenheit
  • Air Inlet: 3/8" NPT
  • Air Exhaust: 3/8" NPT
  • Dry Suction Lift: 13'
  • Wet Suction Lift: 22'
  • Diaphragm: PTFE
  • Check Type: PTFE ball valve
  • Seat: PTFE O-ring
  • Dimensions: 10.05" H x 8.39" W x 6.25" D
