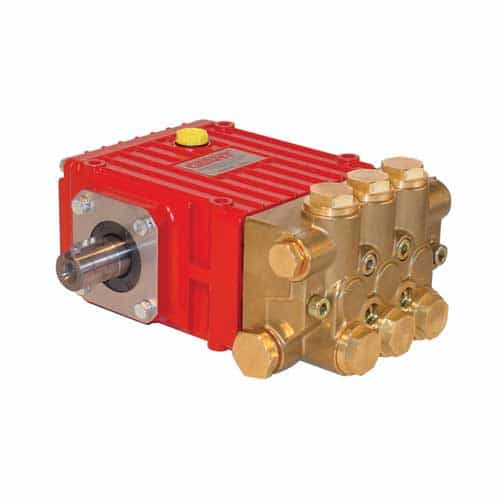

Giant Pumps P317RE2H Triplex Plunger Pump with Bell Housing Coupler - 3.5 GPM, 3045 PSI

Brand:
Mfr. Model #:
P317RE2H
KR Part #:
PUP317RE2H
Weight:
16.00 lbs
Call For Availability
MSRP
$1,066.00
Now Only!
$500.10
starstarstarstarstar (0)
High-quality Giant plunger pump that includes an electric bell housing and a 1 3/8" coupler.



Technical Specifications

Crankcase Capacity: 17 ounce
Inlet Port: 1/2 inch
Max GPM: 3.5
Max PSI: 3350
Max Temperature: 160 degrees F
RPM: 1750
Stroke: 10.6 millimeter

Product Description

Triplex Plunger Pump, Bell Housing, and Coupler

The Giant Pumps P317RE2H is an American-made positive displacement pump for direct or belt driven applications. This triplex plunger high pressure pump has reciprocating plungers and an aluminum crankcase with sight glass and a vented dipstick. This model is mounted on the right side and includes a bell housing and a coupler to install a TC Face motor.

Choose quality Giant products for your car washing systems, pressure washing business, and other high pressure applications.

Specifications:

  • 1750 RPM
  • Max Flow: 3.5 GPM; 13.2 L/min
  • Nominal Pressure: 3045 PSI; 210 bar
  • Power Consumption (Nominal): 7.4 bhp; 5.5 kW
  • Intermittent Pressure: 3350 PSI; 230 bar
  • Power Consumption (Intermittent): 8.1 bhp; 6.0 kW
  • Max Temperature: 160 F; 70 C
  • Plunger Diameter: 0.71"; 18mm
  • Stroke: 0.42"; 10.6 mm
  • Inlet Pressure     145 PSI; 10 bar
  • Crankshaft Diameter: 0.94"; 24 mm
  • Oil Capacity (short): 14.2 fluid ounces; 0.42 L
  • Oil Capacity (extended): 17.0 fluid ounces; 0.5 L
  • Weight: 16 lbs; 7.3 kg
  • Inlet Ports:(2) 1/2" BSP
  • Discharge Ports: (2) 3/8" BSP
  • Shaft Rotation: Top of Pulley Towards Manifold
  • Shaft Mounting: Right
  • Electric bell housing
  • 1 3/8" coupler
  • Made in the U.S.A.

Component Materials:

  • Forged brass manifold
  • Solid ceramic oxide plungers
  • High grade stainless steel valves
  • Nitrile with fabric reinforcement seals
  • Aluminum die-cast gear end
