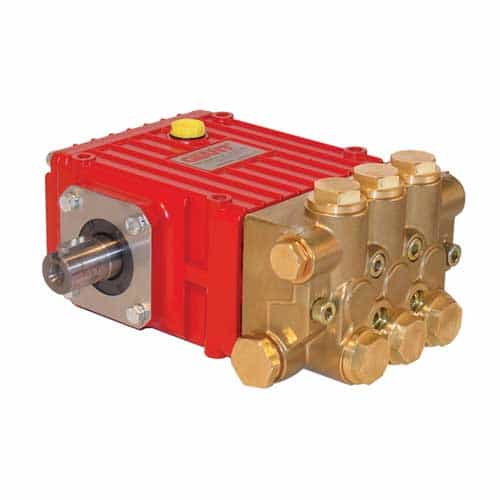

Giant P324RE2F Triplex Plunger Displacement Pump for TC Face Electric Motor - 4.8 GPM, 2200 PSI, 1450 RPM

Brand:
Mfr. Model #:
P324RE2F
KR Part #:
PUP324RE2F
Weight:
16.00 lbs
Call For Availability
MSRP
$1,143.99
Now Only!
$536.69
starstarstarstarstar (0)
Aluminum crankcase triplex plunger pump with a forged brass manifold. 4.8 GPM, 2200 PSI, 1450 RPM.



Technical Specifications

Crankcase Capacity: 17 ounce
Inlet Port: 1/2 inch
Max GPM: 4.8
Max Temperature: 160 degrees F
Max PSI: 2200
Shaft Diameter: 24 millimeter
Stroke: 4.1 millimeter
RPM: 1450

Product Description

Triplex Plunger Pump with Electric Motor Coupling

The Giant P324RE2F pump is a triplex plunger displacement pump that includes a coupling for a TC face electric motor. This American made pump boasts an aluminum crankcase, a forged brass manifold, and solid ceramic plungers with stainless steel bases. Use in high-pressure water transfer applications like commercial car washes.

Specifications:

  • Max Flow: 4.8 GPM (18.2 L/min)
  • Nominal Pressure: 2200 PSI (150 bar)
  • Power Required (Nominal): 7.3 hp (5.4 kW)
  • Maximum Inlet Pressure: 145 PSI (10 bar)
  • Maximum Temperature: 160 °F (70° C)
  • Plunger Diameter: 0.79" (20 mm)
  • Stroke: 0.56" (14.1 mm)
  • Crankshaft Diameter: 24 mm
  • Crankshaft Rotation: Top of Pulley Towards Manifold
  • Inlet Ports: (2x) 1/2" BSP
  • Discharge Ports: (2x) 3/8" BSP
  • Crankcase Oil Capacity (short): 14.2 fluid oz. (0.42 L)
  • Crankcase Oil Capacity (extended): 17.0 fluid oz. (0.5 L)
  • Weight: 16 lbs. (7.3 kg)

Other Details:

  • For use with a TC face electric motor - 7 1/4" diameter bolts
  • 1 1/8" aluminum coupler
  • Right mounted shaft
  • Made in America

Key Component Materials:

  • Manifold: Forged brass
  • Plungers: Solid ceramic oxide
  • Valves: High-grade stainless steel
  • Seals: Nitrile with fabric reinforcing
  • Gear End: Aluminum die-cast
