D-10 Series Pump

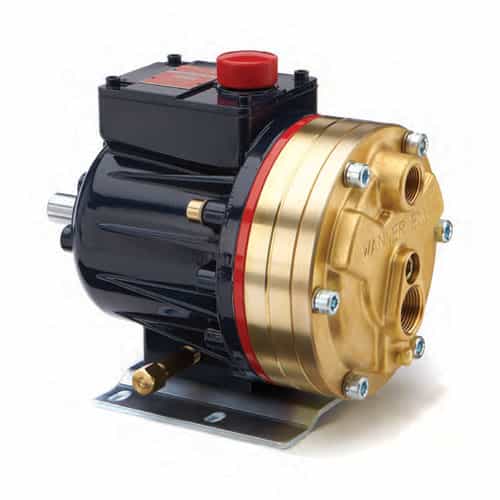

The Hydra-Cell D10SKBTSFHHA pump is part of the versatile line of D-10 pumps that function well in tough environments like car washes and industrial manufacturing mills. This shaft-driven pump has a high-quality brass head and 316L stainless steel valve seats. The D10SKBTSFHHA pump is a versatile, reliable pump for a wide range of applications!

Specifications:

• Shaft-driven pump
• Maximum 6 GPM at 1750 RPM
• Brass pump head
• Kel-Cell NPT ports
• Buna-N diaphragm and o-ring material
• 316L stainless steel valve seat material
• 17-4 stainless steel valve material
• 17-7 stainless steel valve and valve spring retainers
• Works with Hydra-Oil 10W30 standard-duty oil
• Reverse shaft rotation (bi-directional)
• Tapered roller bearings

Features:

• Pumps the full spectrum of low-to-high viscosity fluids
• Features a seal-less design and horizontal disk check valves that enable the pump to handle abrasives and particulates that might damage or destroy other types of pumps
• Simple, compact design reduces initial investment and lowers maintenance costs
• Operational efficiencies reduce energy costs
• Able to run dry without damage or additional maintenance to the pump
• Tolerates non-ideal operating conditions
• Minimizes maintenance and downtime because there are no seals, packing or cups to leak or replace
