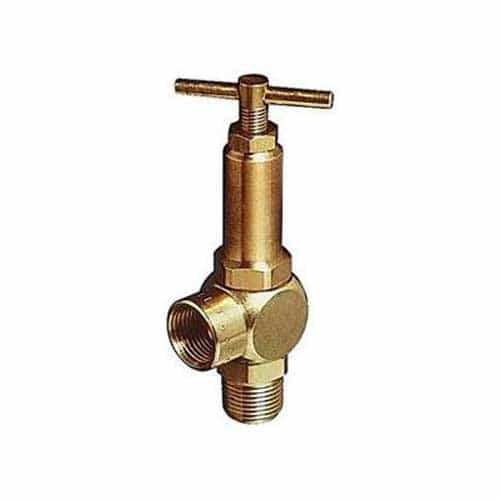

Spraying Systems AA110-3/8-HSS-700 Brass Relief Valve with Stainless Steel Seat - 700 PSI, 3/8 MNPT x 3/8 FNPT
Brand:
Mfr. Model #:
AA110-3/8-HSS-700
KR Part #:
RE110BSS-67
Weight:
0.60 lbs
(0)Brass housing pressure relief valve with a stainless steel seat. 3/8" MNPT x 3/8" FNPT, 700 PSI.
Technical Specifications
Inlet Port: 3/8 inch
Max PSI: 700
Product Description
700 PSI Piston-Type Relief Valve
The Spraying Systems AA110-3/8-HSS-700 Pressure Regulating Valve is a piston-type relief valve made with brass. It has a maximum pressure rating of 700 PSI and 3/8" inlet and outlet ports. This valve allows you to easily regulate flow in systems using centrifugal pumps with throttling valves. It has a guide vane seat that stabilizes flow for vibration reduction. Control line pressure and minimize liquid waste and return liquid back to the liquid source or pump inlet.
Specifications:
- 700 PSI
- Inlet: 3/8" male NPT
- Outlet: 3/8" female NPT
- Brass housing
- Hardened stainless steel seat
- Piston-type
- Free floating design improves speeds and sensitivity
- Removable bonnet to service valve without removing from the line
- Guide vane seat stabilizes flow for vibration reduction
