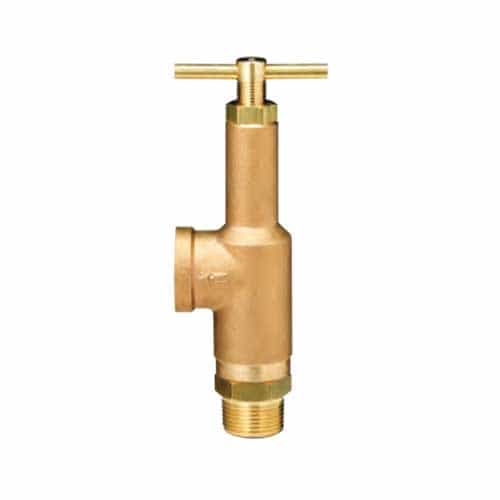

Spraying Systems 6815G-1/2-300 Brass Pressure Relief Valve with Guide Seat - 300 PSI, 1/2 MNPT x 1/2 FNPT, 23 GPM
Brand:
Mfr. Model #:
6815G-1/2-300
KR Part #:
RE6815G-83
Weight:
1.35 lbs
(0)Brass housing pressure relief valve with adjustable cap and lock ring. Guide seat included.
Prop 65
Technical Specifications
Inlet Port: 1/2 inch
Max GPM: 23
Max PSI: 300
Product Description
300 PSI Piston-Type Pressure Relief Valve
The Spraying Systems 6815G-1/2-300 Pressure Regulating Valve is a piston-type relief valve made with brass. It has a maximum pressure rating of 300 PSI and 1/2" inlet and outlet ports. This valve allows you to easily regulate flow in systems using centrifugal pumps with throttling valves. Its adjustable cap and lock ring provide simple valve control. Control line pressure and minimize liquid waste and return liquid back to the liquid source or pump inlet. This relief valve includes a guide seat with a stabilizing vane.
- 300 PSI
- Inlet: 1/2" male NPT
- Outlet: 1/2" female NPT
- Brass construction
- 23 GPM
- Piston-type
- Includes brass guide seat
- Free floating design improves speeds and sensitivity
