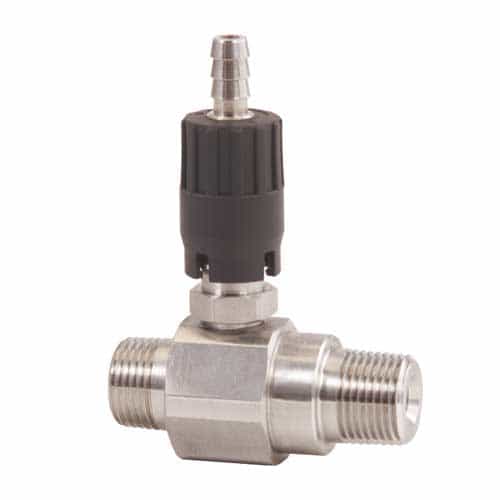

General Pump 100863 Adjustable Stainless Steel Chemical Injector - 8 GPM, 5500 PSI, 3/8 in.

Brand:
Mfr. Model #:
100863
KR Part #:
GPP100863
Weight:
0.40 lbs
GTIN:
682491029991
Availability:
3
Low Stock Warning
MSRP
$170.78
Now Only!
$64.62
starstarstarstarstar (0)
Stainless steel body chemical injector with a 3/8" inlet and outlet. Chemical is added using a 1/4" hose barb. 5500 PSI max pressure rating, 5 to 8 GPM flow rate.



Technical Specifications

Inlet Port: 3/8 inch
Max GPM: 8
Max PSI: 5500
Max Temperature: 190 degrees F

Product Description

3/8" x 3/8" MNPT Downstream Chemical Injector

The General Pump 100863 Hi-Draw Chemical Injector is made with stainless steel and has Viton seals. This injector is installed downstream to provide an economical way to apply chemicals to pressured water.

Dimensions: 2.2" x 1.07" x 3.0"

Specifications:

  • 5500 PSI maximum pressure rating
  • 5-8 GPM
  • 3/8" NPT-M inlet
  • 3/8" NPT-M outlet
  • 1/4" hose barb chemical port
  • 190° maximum temperature
  • Orifice: 2.3 mm
  • Stainless steel construction
  • Viton seals
  • Weight: .5 lbs.

Features:

  • Adjustable
  • Up to 20% injection draw rate
  • Made in America

UPC:

  • 682491029991
