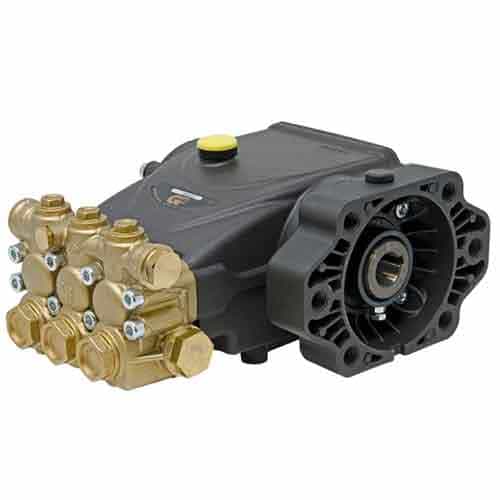

General Pump ES2013HYD ES Series Pump 5.55 GPM, 3600 PSI, with Hydraulic Flange
Brand:
Mfr. Model #:
ES2013HYD
KR Part #:
GPES2013HYD
Weight:
21.00 lbs
(0)Reliable performance from General Pumps ES series. ES2013 Series 59 Pump provides 5.55 GPM flow, with pressures up to 3600 PSI. Includes SAE B 2/4 bolt mount hydraulic flange.
Prop 65
Technical Specifications
Max GPM: 5.55
Max PSI: 3600
Max Temperature: 165 degrees F
RPM: 1750
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Bore: 20 millimeter
Stroke: 13 millimeter
Shaft Diameter: 22.225 millimeter
Product Description
ES Series Plunger Pump with Hydraulic Flange
General Pump Evolution ES Series pumps boast reliability and long-lasting service life. Features forged brass manifold and plunger guide bushing for durability as well as an innovative protection chamber between the crankcase and manifold! Includes SAE B 2/2 bolt mount flange and 7/8" hollow keyed shaft for easy power transfer.
Pump Dimensions: 10.4" x 8.8" x 5.4"
Shaft Diameter: .945" / 24 mm
Features:
- Triplex plunger pump
- Tough forged brass manifold
- Plunger guide bushing
- Solid ceramic plungers w/ dual glide system
- Optimized outlet valves for reliable use
- Unique protection chamber separates crankcase and manifold
- Dual lip oil seal
- Tach sensor port and pickup ring included
- 7/8" Hollow Keyed Shaft, SAE B
Specifications:
- Maximum Volume: 5.55 GPM
- Maximum Discharge Pressure: 3,600 PSI
- Maximum Pump Speed: 1750 RPM
- Maximum Temperature: 165°F
- Inlet Port: 1/2"-14 BSP-F
- Discharge Port: 3/8"-19 BSP-F
