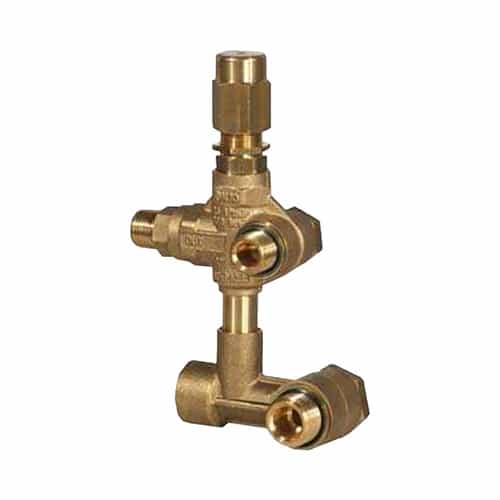

General Pump YVB35KDME Control Set Unloader for EP Series - 6.5 GPM, 3650 PSI, 1/2 IN x 3/8 OUT

Brand:
Mfr. Model #:
YVB35KDME
KR Part #:
GPU35KDME
Weight:
1.50 lbs
GTIN:
682491076896
Call For Availability
MSRP
$189.67
Now Only!
$71.77
starstarstarstarstar (0)
Brass and stainless steel adjustable unloader with a 1/2" inlet and a 3/8" outlet. Usable with pressure levels up to 3650 PSI, with a 3200 PSI rating. 6.5 GPM maximum flow rate.



Technical Specifications

Max GPM: 6.5
Max PSI: 3650
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Max Temperature: 195 degrees F

Product Description

EP Series Pump Pressure Unloader

The General Pump YVB35KDME Unloader is a control set pressure unloading device with a maximum pressure of 3650 PSI. Made with brass and stainless steel and has Buna-N seals. General Pump recommends using a safety relief valve device in conjunction with this unloader when installed on a positive displacement pump.

Dimensions: 4" width x 2.5" height x 8" depth

Specifications:

  • 3650 PSI maximum pressure - rated for 3200 PSI, 319 PSI minimum pressure
  • 6.5 GPM maximum volume
  • 1/2" inlet port
  • 3/8" outlet port
  • 195° Fahrenheit maximum fluid temperature - 140° Fahrenheit continuous use
  • Brass and stainless steel construction
  • Buna-N nitrile seals
  • Direct mount
  • Recommended for use with General Pump EP Series pumps
  • Weight: 1.5 lbs.
