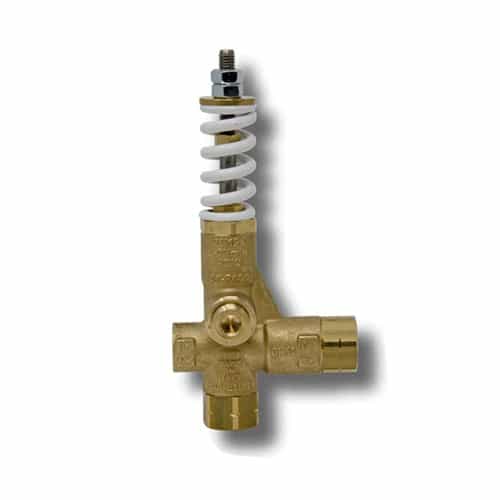

General Pump PULSAR4LP Trapped Pressure Unloader Valve - 10.5 GPM, 2600 PSI, 3/8 Ports
Brand:
Mfr. Model #:
PULSAR4LP
KR Part #:
GPU815D
Weight:
1.58 lbs
(0)Brass pressure unloader with a maximum pressure of 2600 PSI and a maximum flow rate of 10.5 GPM. Inlet, outlet, and bypass ports are all 3/8" NPTF. Reliably maintains consistent pressure without too much maintenance. White spring.
Prop 65
Technical Specifications
Max GPM: 10.5
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Max Temperature: 195 degrees F
Type: 2600
Product Description
2600 PSI White Spring Unloader
The General Pump PULSAR4LP Unloader is a pressure release valve that maintains consistent pressure levels, protects pumps, and allows for easier spray gun operation. This quality unloader is made with brass and has a white spring. Extremely reliable with easy maintenance. General Pump recommends using a safety relief valve device in conjunction with this unloader when installed on a positive displacement pump.
Dimensions: 3.31" width x 2.2" height x 7.25" depth
Specifications:
- 2600 PSI maximum pressure - rated for 2300 PSI
- 10.5 GPM max volume
- 3/8" (x2) inlet port
- 3/8" outlet port
- 3/8" (x2) bypass port
- 195° Fahrenheit maximum fluid temperature - 140° Fahrenheit continuous use
- Brass construction
- White spring
- Weight: 1.575 lbs.
