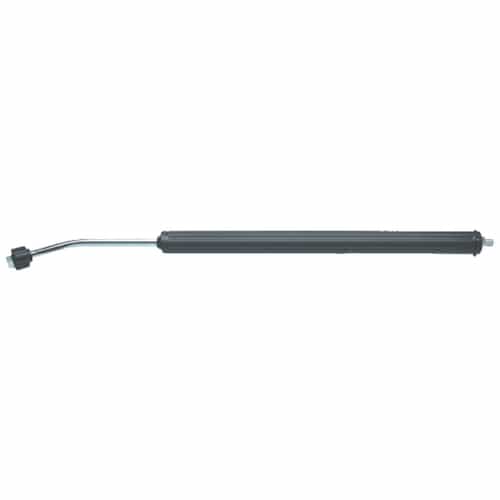

General Pump YL24PNB Bent Insulated YL Lance - 24 Inch, 10.5 GPM, 4050 PSI
Brand:
Mfr. Model #:
YL24PNB
KR Part #:
GPYL24PNB
Weight:
1.30 lbs
(0)A bent lance measuring 24 inches. Helps operators reach higher vehicles and reach awkward angles. Handles a maximum pressure of 4050 PSI and flow rate of 10.5 GPM.
Technical Specifications
Max PSI: 4050
Max GPM: 10.5
Max Temperature: 320 degrees F
Inlet Port: 1/4 inch
Outlet Port: 1/4 inch
Product Description
24-Inch Zinc Plated Steel Lance
General Pump's YL24PNB is a 24-inch bent lance designed for hot and cold water applications in car washes and pressure washers. Features a round insulator that wraps around the lance to protect the operator from burns caused by touching the bare metal which could be excessively hot because of the fluid being sent through the lance. Handles a maximum temperature of 320 degrees Fahrenheit. Equipped with connection measuring 1/4 Inch NPT with a male inlet and female outlet.Specifications:
- Maximum Volume: 10.5 GPM
- Rated Discharge Pressure: 3,650 PSI
- Maximum Discharge Pressure: 4,050 PSI
- Maximum Temperature: 320_ F
- Inlet: 1/4” NPT-M
- Outlet: 1/4” NPT-F
- Materials Zinc Plated Steel, Plastic, Rubber
