General Pump EPHT1813SL Emperor EPHT Series Triplex Plunger Pump - 3.4 GPM, 2465 PSI, 1450 RPM, Hi-Temp Seals

Brand:
Mfr. Model #:
EPHT1813SL
KR Part #:
GPEPHT1813SL
Weight:
18.00 lbs
Out of Stock - Pre-Order Now
MSRP
$1,860.00
Now Only!
$635.12
starstarstarstarstar (0)
The Emperor EPHT series features patented high tech packings composed of dynamic low-pressure seal retainers, superior low-pressure and high pressure seals, innovative intermediate rings.

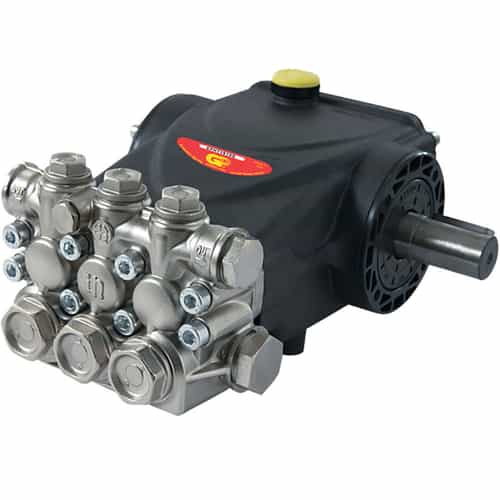

NOTE: Image for illustrative purposes. Although a right shaft pump is shown, this product is a left shaft pump.



Technical Specifications

Max GPM: 3.4
Max PSI: 2465
RPM: 1450
Inlet Port: 1/2 inch
Horsepower: 5.7
Bore: 18 millimeter
Stroke: 13 millimeter
Liquid Temperature: 185 degrees F
Shaft Diameter: 24 millimeter
Crankcase Capacity: 14 ounces

Product Description

3.4 GPM General Pump With High Temp Seals

This EPHT series pump is a triplex plunger model has solid ceramic plungers with a dual guide system and a solid left hand shaft. All the patented technology in the Emperor series plus high tech packings with seals capable of handling high temperature applications.

Dimensions: 9.5" X 8.38 X 5.1"

  • Nickle-Plated Manifold
  • Patent/pending plunger guide bushing
  • Solid ceramic plungers with an innovative dual guide system.
  • Optimized outlet valves
  • New dual lip oil seal

Specifications:

  • Max Volume: 3.3 GPM
  • Max Discharge Pressure: 2465 PSI
  • Max Pump Speed: 1450 RPM
  • Max Inlet Pressure: 125 PSI
  • Stroke: 10mm
  • Bore: 18mm
  • Horsepower: 5.6
  • Inlet: 1/2"-14 BSPF
  • Discharge port: 3/8"-19 BSPF
  • Left-hand Solid Shaft: 24mm
  • Weight:18lbs
