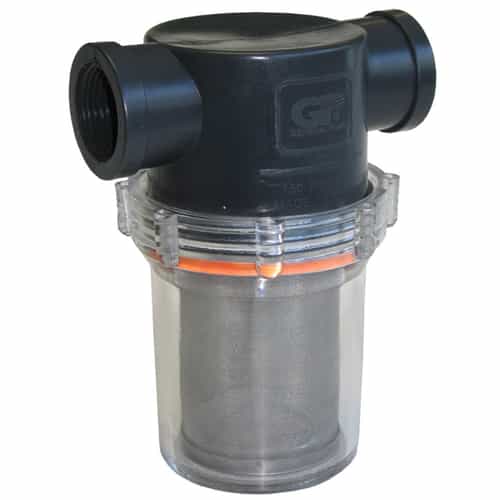

General Pump DF10080 Clear Bowl Filter with 80 Mesh - 1 Inch Ports
Brand:
Mfr. Model #:
DF10080
KR Part #:
GPDF10080
Weight:
0.75 lbs
GTIN:
682491121237
(0)Nylon body strainer with a clear poly bowl that provides visual access to the 80 mesh SS screen. Use in applications up to 150 PSI. The DF10080 model has 1" female NPT inlet and outlets.
Technical Specifications
Max PSI: 150
Inlet Port: 1 inch
Outlet Port: 1 inch
Product Description
1" Nylon Water Filter
The General Pump DF10080 Filter is a helpful accessory that keeps dirt and other solid particulates from reaching your pump. This DF Series filter provides an easy way to protect the equipment in your pressured fluid system, and it's made with quality materials that give it a long life under normal use.
Filter features a nylon body, EPDM rubber O-ring, and a clear plastic polycarbonate bowl that allows you to see inside and keep aware of when it needs cleaning. This model is equipped with a stainless steel construction 80 mesh filter screen and has 1" NPT inlet and discharge ports.
Specifications:
- 1" NPT inlet and outlet ports
- 150 PSI maximum pressure (at 70° Fahrenheit)
- 125 PSI maximum pressure (at 125° Fahrenheit)
- Stainless Steel 80 mesh screen
- EPDM O-ring material
- Nylon body material
- Polycarbonate bowl material
- Weight: .75 lbs.
Features:
- Keeps debris out of pump
- Clear plastic bowl makes it easy to see when it needs to be cleaned
- Easy to disassemble and assemble for cleaning
- Made with durable long lasting materials
