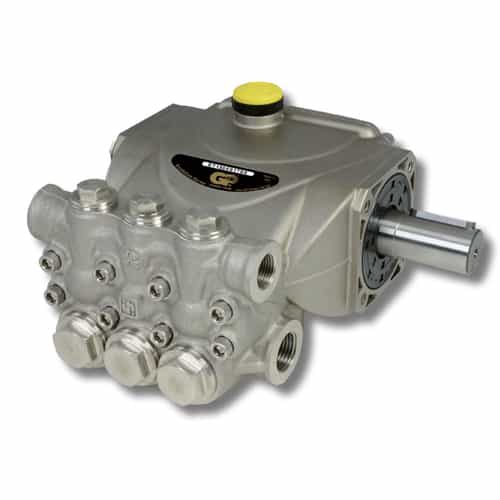

General Pump ET1810S17SS Solid Shaft ET Series Triplex Plunger Pump - 3.4 GPM, 2,175 PSI, 1750 RPM
Brand:
Mfr. Model #:
ET1810S17SS
KR Part #:
GPET1810S17SS
Weight:
11.00 lbs
(0)This ET Series pump's head is made with 316 stainless steel for superior corrosion resistance. Solid ceramic plungers for increase strength. Provides a maximum flow rate of 3.4 GPM.
Technical Specifications
Max PSI: 2175
Max GPM: 3.4
Horsepower: 5
RPM: 1750
Crankcase Capacity: 8.5 ounce
Max Temperature: 165 degrees F
Inlet Port: 1/2-14 Inch BSP-F
Outlet Port: 3/8-19 Inch BSP-F
Shaft Diameter: .945 inch
Product Description
3.4 GPM - Stainless Steel ET Series Pump
The General Pump ET1810S17SS is an ET Series triplex plunger pump with a solid 24 mm shaft. The fluid end is constructed with 316 stainless steel to provide superior corrosion resistance extending the life of the pump's head. Incorporates a new generation seal package for increased effectiveness. Produces a maximum flow rate of 3.4 GPM, tolerates a maximum pressure of 2175 PSI, and maximum speed of 1750 RPM.Specifications:
- Maximum Volume: 3.4 GPM
- Maximum Discharge Pressure: 2,175 PSI
- Horsepower: 5.0 EBHP
- Maximum Pump Speed: 1750 RPM
- Maximum Inlet Pressure: 125 PSI
- Max. Inlet Vacuum: 3 ft. water (2.6 Hg)
- Plunger Bore (in / mm): .708 in./18 mm
- Plunger Stroke (in / mm): .393 in./10 mm
- Oil Capacity: 8.5 oz.
- Maximum Fluid Temperature: 165° F
- Inlet Port Thread: 1/2"-14 BSP-F
- Discharge Port Thread: 3/8"-19 BSP-F
- Shaft Diameter: .945 in./24 mm
- Weight: 11.0 lbs.
- Dimensions: 8" x 7.4" x 4.7"
- 316 SS fluid end for superior corrosion resistance
- New Generation seal package
- Dust protection chamber
- Solid ceramic plungers
- Oversized plunger guide
- Optimized inlet and outlet valves
- Oversized crankcase
