General Pump ETB1509S17L ETB Series Triplex Plunger Pump - 2.1 GPM, 2610 PSI, 1750 RPM, Left Shaft

Brand:
Mfr. Model #:
ETB1509S17L
KR Part #:
GPETB1509S17L
Weight:
11.00 lbs
Out of Stock - Pre-Order Now
MSRP
$880.79
Now Only!
$300.77
starstarstarstarstar (0)
A plunger pump from General Pump's ETB series with a left shaft. Features an advanced plunger mounting system. Provides a flow rate of 2.1 GPM.

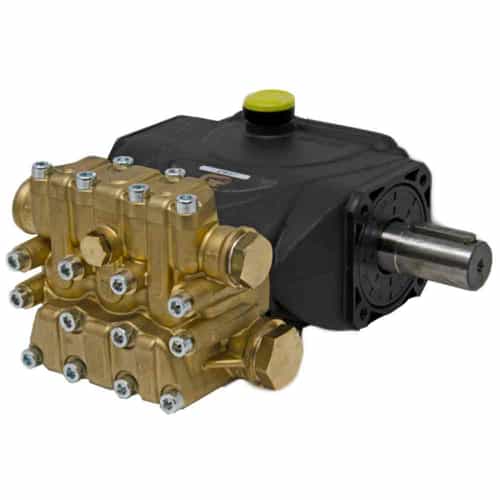

Note: Picture shows a right shaft pump, but this is a left hand pump.



Technical Specifications

Bore: 15 millimeter
Crankcase Capacity: 8.5 ounce
Horsepower: 3.7
Inlet Port: 1/2 Inch - 14
Outlet Port: 3/8 Inch - 19
Max GPM: 2.1
Max PSI: 2610
Max Temperature: 165 degrees F
RPM: 1750
Shaft Diameter: 24 millimeter
Stroke: 9.4 millimeter

Product Description

Solid Shaft Plunger Pump - Left

The General Pump ETB1509S17L is an ETB Series triplex plunger pump designed with an advanced plunger mounting system and valve cover that allows for easy maintenance. Made with a durable forged brass manifold and dust protection chamber to extend the life of them pump. Delivers a maximum flow rate of 2.1 GPM. Constructed to withstand a maximum pressure of 2610 PSI.

Specifications:
  • Maximum Volume: 2.1 GPM
  • Maximum Discharge Pressure: 2610 PSI
  • Horsepower: 3.7 EBHP
  • Maximum Pump Speed: 1750 RPM
  • Maximum Inlet Pressure: 125 PSI
  • Max. Inlet Vacuum: 3 ft. water (2.6 Hg)
  • Plunger Bore (in / mm): .591 in./15 mm
  • Plunger Stroke (in / mm): .370 in./9.4 mm
  • Oil Capacity: 8.5 oz.
  • Maximum Fluid Temperature: 165 degrees F
  • Inlet Port Thread: 1/2”-14 BSP-F
  • Discharge Port Thread: 3/8”-19 BSP-F
  • Shaft Diameter: .945 in./24 mm
  • Weight: 11.0 lbs.
  • Dimensions - Nominal: 8" x 7.4" x 4.7"
Features:
  • Durable forged brass manifold
  • Dust protection chamber
  • Solid ceramic plungers
  • Advanced plunger mounting system
  • Valve cover for ease of service
