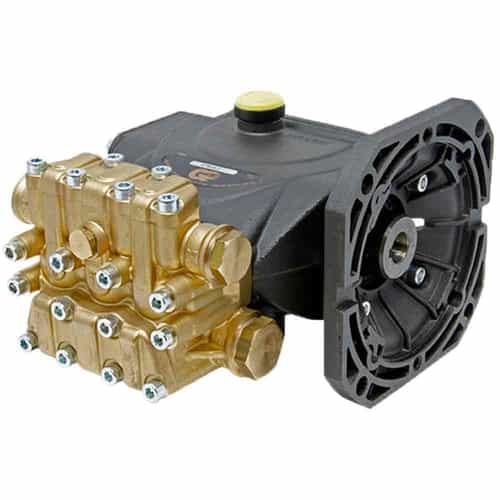

General Pump ETB1506E345 Electric ETB Series Triplex Plunger Pump - 2.93 GPM, 2610 PSI, 3400 RPM

Brand:
Mfr. Model #:
ETB1506E345
KR Part #:
GPETB1506E345
Weight:
11.00 lbs
Out of Stock - Pre-Order Now
MSRP
$880.79
Now Only!
$300.77
starstarstarstarstar (0)
A triplex plunger pump with a forged brass manifold and ceramic plungers to deliver a longer life span. The NEMA 56C hollow shaft measures 5/8". Delivers a maximum flow rate of 2.93 GPM.



Technical Specifications

RPM: 3400
Max GPM: 2.9
Max PSI: 2610
Bore: 15 millimeter
Stroke: 6.5 millimeter
Horsepower: 4.8
Max Temperature: 165 degrees F
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch

Product Description

5/8" Hollow Shaft Plunger Pump

The General Pump ETB1506E345 is an electric triplex plunger pump from the ETB series. It is built with a forged brass manifold to increase the durability of the pump's head. Plungers are made with solid ceramic to improved strength. Designed with a 5/8" hollow shaft that meets NEMA 56C flange standards. The pump is engineered to endure a maximum pressure of 2610 PSI, handles a maximum speed of 3400 RPM, and produces a flow rate of 2.93 GPM.
Specifications:
  • GPM: 2.93
  • PSI: 2610
  • RPM: 3400
  • Bore: .591 in./15 mm
  • Stroke: .256 in./6.5 mm
  • HP: 4.8 EBHP
  • Maximum Inlet Pressure: 125 PSI
  • Max. Inlet Vacuum: 3 ft. water (2.6 Hg) Flooded
  • Oil Capacity: 8.5 oz.
  • Maximum Fluid Temperature: 165° F
  • Inlet Port Thread: 1/2"-14 BSP-F
  • Discharge Port Thread: 3/8"-19 BSP-F
  • Shaft Diameter: 5/8" Hollow
  • Weight: 11.0 lbs.
  • Dimensions: 7.3" x 7.4" x 5.5"
Features:
  • Durable forged brass manifold
  • Dust protection chamber
  • Solid ceramic plungers
  • Advanced plunger mounting system
  • Valve cover for ease of service
  • NEMA 56C flange, 5/8" hollow shaft
