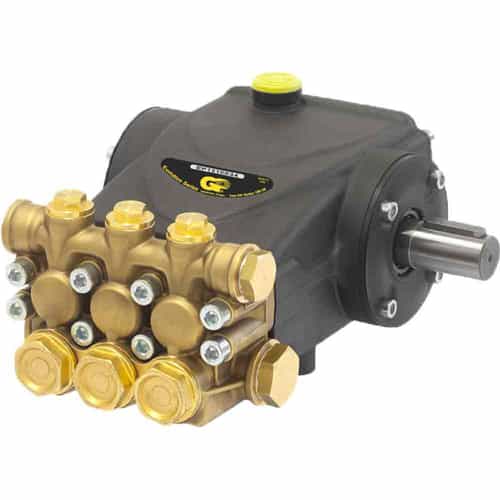

General Pump EP1813S17L Solid Shaft Plunger Pump, 4.2 GPM, 2900 PSI, 1750 RPM, Left Shaft

Brand:
Mfr. Model #:
EP1813S17L
KR Part #:
GPEP1813S17L
Weight:
15.40 lbs
GTIN:
682491117414
Out of Stock - Pre-Order Now
MSRP
$1,081.00
Now Only!
$339.76
starstarstarstarstar (0)
This General Pump triplex plunger pump features a new generation seal system that allows for a longer life. Housed in forged brass manifold for improved working pressure. 4.2 GPM flow, at pressures up to 2900 PSI. All pumps are required to have a primary regulating device as well as a secondary pressure safety relief device.



Technical Specifications

Max GPM: 4.2
Max PSI: 2900
Max Temperature: 165 degrees F
Horsepower: 8.3
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
RPM: 1750
Bore: 18 millimeter
Stroke: 13 millimeter
Shaft Diameter: 24 millimeter

Product Description

2900 PSI General Pump

This EP series pump is a triplex plunger pump that has a solid ceramic plunger with a dual guide system. Advanced forged brass manifold provides for increased working pressure. Solid ceramic plungers with innovative dual guide system and guide bushing for superior performance. This pump has large, lightweight connecting rods with long-life low and high-pressure seals. 24 mm solid shaft, left mounted .

Dimensions: 9.5" x 8.38" x 5.1"

  • Triplex Plunger Pump.
  • Advanced forged brass manifold, increases working pressure to 4,000 PSI.
  • Patent/pending plunger guide bushing
  • Solid ceramic plungers with an innovative dual guide system.
  • Left shaft
  • Optimized outlet valves
  • New dual lip oil seal.

Specifications:

  • Max Volume: 4.2 GPM
  • Max Discharge Pressure: 2900 PSI
  • Max Pump Speed: 1750 RPM
  • Max Inlet Pressure: 125 PSI
  • Inlet Port: 1/2"-14 BSP-F
  • Outlet Port: 3/8"-19 BSP-F
  • See more under the Specifications tab
