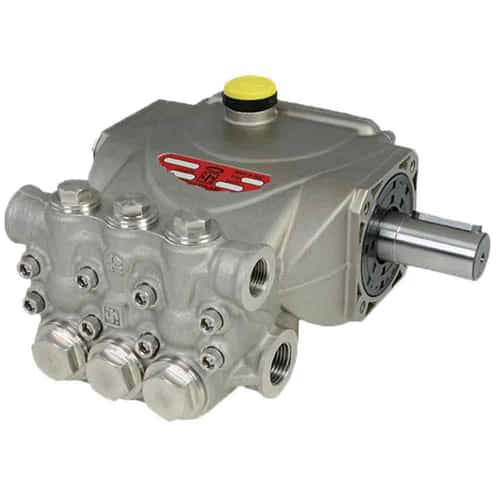

General Pump ET1812S17SS Solid Shaft ET Series Triplex Plunger Pump - 4.0 GPM, 2,175 PSI, 1750 RPM

Brand:
Mfr. Model #:
ET1812S17SS
KR Part #:
GPET1812S17SS
Weight:
11.00 lbs
Out of Stock - Pre-Order Now
MSRP
$2,745.00
Now Only!
$937.32
starstarstarstarstar (0)
This ET Series pump's head is made with 316 stainless steel for superior corrosion resistance. Solid ceramic plungers for increase strength. Provides a maximum flow rate of 4.0 GPM.



Technical Specifications

Max GPM: 4.0
Max PSI: 2175
Max Temperature: 165 degrees F
RPM: 1750
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Bore: 18 millimeter
Stroke: 12 millimeter
Shaft Diameter: 24 millimeter

Product Description

4.0 GPM - Stainless Steel ET Series Pump


The General Pump ET1810S17SS is an ET Series triplex plunger pump with a solid 24 mm shaft. The fluid end is constructed with 316 stainless steel to provide superior corrosion resistance extending the life of the pump's head. Incorporates a new generation seal package for increased effectiveness. Produces a maximum flow rate of 3.4 GPM, tolerates a maximum pressure of 2175 PSI, and maximum speed of 1750 RPM.

Specifications:
  • Maximum Volume: 4.0 GPM
  • Maximum Discharge Pressure: 2,175 PSI
  • Horsepower: 6.0 EBHP
  • Maximum Pump Speed: 1750 RPM
  • Maximum Inlet Pressure: 125 PSI
  • Max. Inlet Vacuum: 3 ft. water (2.6 Hg)
  • Plunger Bore: .708 in./18 mm
  • Plunger Stroke: .472 in./12 mm
  • Oil Capacity: 8.5 oz.
  • Maximum Fluid Temperature: 165° F
  • Inlet Port Thread: 1/2"-14 BSP-F
  • Discharge Port Thread: 3/8"-19 BSP-F
  • Shaft Diameter: .945 in./24 mm
  • Weight: 11.0 lbs.
  • Dimensions: 8" x 7.4" x 4.7"
Features:
  • 316 SS fluid end for superior corrosion resistance
  • New Generation seal package
  • Dust protection chamber
  • Solid ceramic plungers
  • Oversized plunger guide
  • Optimized inlet and outlet valves
  • Oversized crankcase
