General Pump 100821 Fixed Downstream Brass 3-5 GPM Chemical Injector - 4500 PSI

Brand:
Mfr. Model #:
100821
KR Part #:
GPP100821
Weight:
0.30 lbs
Out of Stock - Pre-Order Now
MSRP
$29.54
Now Only!
$11.33
starstarstarstarstar (0)

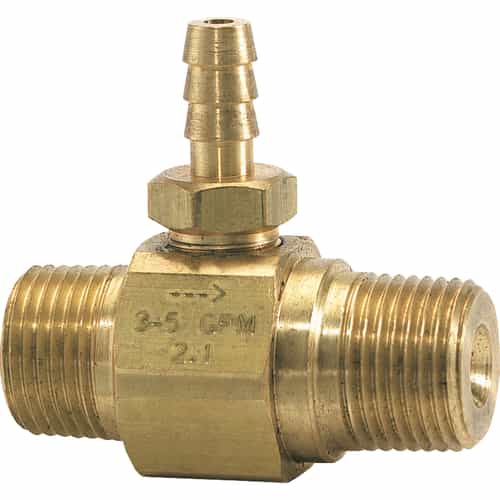

The General Pumps 100821 is a 3 to 5 GPM chemical injector used for car wash and pressure washer chemical draw and injection into water downstream from your pump. The body of the 100821 is made of brass, the 1/4" hose barb nozzle is made of 303 stainless steel, and the O-rings are made of Viton. Tolerates operating pressure levels up to 4500 PSI. 3/8" MPT inlet and outlet ports. Made in U.S.A.




Technical Specifications

Max PSI: 4500
Max GPM: 5
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch

Product Description

Fixed Chemical Injector - 3-5 GPM, 4500 PSI

The General Pump 100821 Injector is a brass body chemical injector with a fixed stainless steel nozzle and Viton O-rings. It provides an easy solution to apply soap,  detergent, and other car wash or pressure wash chemicals downstream from the pump in your system. The 100821 model is used for systems with a 3 to 5 GPM flow rate range and can be used for pressure levels up to 4500 PSI.

100821 Specifications and Features

  • Flow Rate Range: 3 to 5 GPM (gallons per minute)
  • Maximum Operating Pressure: 4500 PSI
  • Style: Fixed
  • Inlet Port" 3/8" NPT-M
  • Discharge Port: 3/8" NPT-M
  • Chemical Port: 1/4" hose barb
  • Maximum Fluid Temperature: 190° Fahrenheit
  • Dimensions: 1.8" x .95" x 1.7"
  • Weight: 3.7 ounces
  • Body Construction: Brass
  • Nozzle Construction: 303 stainless steel
  • O-Ring Material: Viton
  • Made in the USA

Tips for Safe Use of the General Pump 100821

  • This product is to be used with clean, fresh water.
  • Install valve with direction arrow pointing downstream.
  • For proper operation a control device such as a dual lance wand, quick couple nozzles, or an adjustable nozzle holder must be used to lower the system pressure at the nozzle.
  • Under no circumstances should the pressure of the system exceed the maximum rated pressure of any component.
