Kleen-Rite KRMB003K Brass Self-Serve Car Wash Bay Manifold Block Kit
Brand:
Mfr. Model #:
KRMB003K
KR Part #:
KRMB003K
Weight:
6.00 lbs

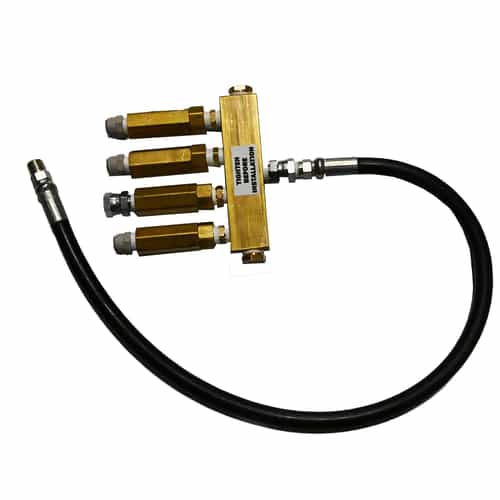

(0)This Kleen-Rite KRMB003K Kit includes a ready-to-use brass manifold block with preinstalled check valves, nipple fittings, swivels, plugs, and adapters. Use this in your self-serve bays as the point where supply lines meet the hose used by customers in the bay. Skip the searching - save time by getting the manifold block and compatible fittings in one convenient kit!
Technical Specifications
Inlet Port: 3/8 inch
Outlet Port: 1/2 inch
Product Description
Complete Brass Manifold Block Kit for Self-Serve Car Wash Bays
The Kleen-Rite KRMB003K Brass Manifold Kit is a complete manifold assembly with fittings and check valves preinstalled on the block. That means it's ready to use in your self-serve bay without requiring additional components. Everything you need in one package at an affordable price!
What is a Manifold Block?
This self-serve plumbing manifold functions as the point where chemical fluid supply lines source the hose in your bay. Polytubing and hose lines come from the systems in your equipment room and are coupled to the block inlet ports. As lines close and open depending on the function selected, liquid enters the block, then exits through the outlet port and flows into the hose in the bay. The block itself is made of corrosion resistant brass and includes four 3/8" inlet ports, two 3/8" side ports, and one 1/2" outlet port.
Item Specifications and Features
- Block material: Brass metal
- 3/8" NPT inlet/outlet dead swivel
- 3/8" quick connect tube fittings for low-pressure functions
- Easily adaptable and expandable
- Use with any PT300 polytubing
- Weight: 6 lbs
- SKU: KRMB003K
- Other available option: KRMB003-SSK Stainless Steel Manifold Block Kit
- Buy just the brass manifold block (no accessories): KRMB003
View Kit Breakdown
- (1) KRMB003 Brass Self-Serve Bay Manifold Block
- (4) CVB610 Brass 2000 PSI Check Valve
- (4) 28-213L Brass Hex Pipe Nipple Fitting
- (2) 140466 Steel Non-Working Straight Swivel
- (2) 28-204S Brass Hex Head Pipe Plug
- (3) PI011223S Acetal Straight Adapter Fitting
- (1) HA036WBK1414 Black 3' Length Single Wirebraid Hose
- (1) 1" x 2" Decal - tighten before installation
Why is Brass an Ideal Material for Car Wash Manifold Blocks?
Brass contains zinc that forms a protective layer that protects from corrosion. Additionally, brass contains copper that adds anti-microbial properties. This durable metal can last many years and has low friction characteristics. For all of these reasons, brass is a great choice for manifold blocks use in self-service car wash bays. Brass offers solid performance characteristics while still being economical. Low-quality steel offers cheap cost but limited durability and corrosion resistance, while stainless steel is a high-end option that will cost more. Brass is generally considered a good compromise between cost and performance goals.
