Complete Pump Stand for 3 Self-Serve Car Wash Bays

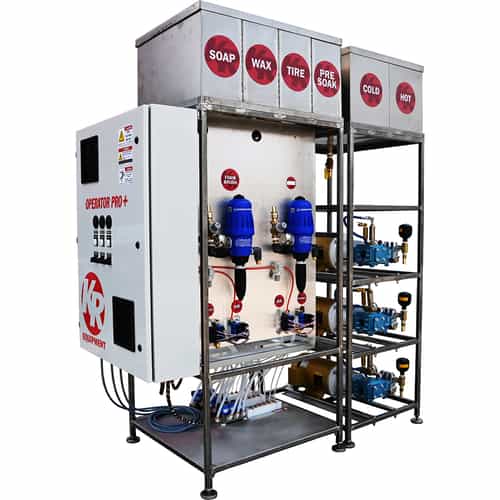

The Operator Pro Plus 3-Bay System is a self-contained car wash pump system designed to completely service three self-serve bays. This impressive unit facilitates efficient chemical delivery in under 7 seconds! The stainless steel housing, small footprint, and energy-efficient VFDs make it an obvious choice for any modern self-serve wash aiming to enhance revenue and reduce operation cost.

The PSP300 is equipped with CAT pumps, 3HP direct drive motors, and Dosatron chemical proportioners that work together to push high-pressure and low-pressure services to wash bays. Stainless steel solenoid blocks add to its reliability. It's pre-plumbed and prewired to make installation easier. Spot-free rinse delivery is included, as well as spare contacts for items like air dryers.

PSP300 Details and Features

• 3-bay pump stand unit with 8 standard functions (HP and LP)
• 3HP VFDs with 3-year manufacturer warranty
• CAT plunger pumps
• 3HP electric motors
• Dosatron chemical dispensers
• Stainless steel frame
• Direct-drive design - no belts required
• Built-in chemical tanks
• Single electrical cabinet with main power cutoff switch
• Requires only one power source
• Small footprint
• Energy efficient
• Modular space savings
• Easy to install
• Reasonable lead times
• UL panel available upon request for upcharge
• Optional extras include: weep system, additional Dosatrons (up to 4 total), installation kits, and bay kits. Professional installation services are available through our nationwide network.
• If you are an established distributor interested in offering these systems to your clients, please reach out to Kleen-Rite to discuss a possible partnership

Meter Box Requirements

Your meter/coin box must be equipped with these items to use the Operator Pro Plus System. If your box does not already have these items, they must be purchased separately.

• 3-Stack Rotary Switch (ST0213)
• 18G/20C Wire (WI0090)

Standard Low-Pressure Services

• Tire Cleaner
• Pre-Soak
• Foam brush
• Foam wax
• Spot-free delivery (production not included)
• Optional: Winter foam brush soap delivery

Standard High-Pressure Services

• High-pressure soap
• High-pressure rinse
• High-pressure wax

Kleen-Rite Equipment Product

Operator Pro Plus systems are part of the Kleen-Rite Equipment line. Design and assembly are done in-house by car wash experts. This close relationship to the development and production of the systems means you get more reasonable lead times for builds, valuable advice on the best system for your needs, smoother customization if needed, installation guidance, and technical assistance once installed.

Benefits of the VFDs On the Operator Pro Plus 3-Bay Pump System

One of the main highlights of the Operator Pro Plus is the use of VFDs, or variable frequency drives, that save on electrical consumption and reduce wear on pumps. VFDs are used instead of contactors to slowly ramp up the startup and shutdown of the pump. Instead of going from 0 to 100% speed, VFDs gradually increase the speed of the pump when starting (and gradually decrease when shutting off).

• Cuts down on inrush electrical consumption for the motor, which is easier on the motor brushes
• Eliminates rough banging and abuse on the motor when starting
• VFDs can be used to control what pressure level you want from each pump - when the pump can be used in a more versatile way, it eliminates or drastically cuts down on the need for auxiliary equipment like spot-free and low-pressure delivery units
• Cuts down on air consumption by eliminating air pumps

Advantages of a Pre-Plumbed and Prewired Configuration

The Operator Pro Plus is a complete, ready-to-go unit with the equipment plumbed and wired. The list below shows some of the minor components that are included with the system. Please note that while the unit itself is ready to operate, it will require installation work to be compatible with your existing infrastructure. It's recommended that you hire professional electricians and/or experienced technicians for installation and setup.

Supplies Included with Operator Pro Plus PSP300

• Fittings
• Pressure gauges
• Pressure regulators
• Solenoid valves and manifolds
• Poly tubing
• Hose
• Air filters
• Transformer
• Decals
• Flanges
• Cooling fan and vents
• Wires, relays, and contactors
• Bay shutoff switches
• Washdown switches
• Exterior panel lights (illuminate when bay is running)
