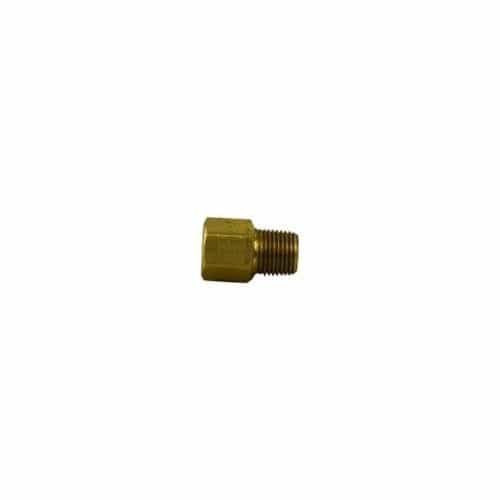

28-190L Brass Female X Male Pipe Extender Adapter, 1/8 in. NPTF x 1/8 in. NPTF
Brand:
Mfr. Model #:
28-190L
KR Part #:
BFA120-22
Weight:
0.02 lbs
Availability:
6
(0)Brass fitting allows for the extension of pipe when only a minor extension is needed. Connect two 1/8" NPTF ends, one male and one female, with this fitting that features a hex shape for easy tightening. Tolerates high operating pressure and has a wide temperature range.
Prop 65
Technical Specifications
Max PSI: 1200
Min Temperature: -65 degrees F
Max Temperature: 250 degrees F
Product Description
Brass Extender Adapter 1/8in.
This light pattern brass extender adapter is a slimmed-down version of the normal-sized extender adapter, featuring a smaller hex, shorter length, and a lighter weight for a lighter, more compact system. Connect two 1/8" NPTF finished pipes, male to female, with ease with the 28-190L. Features above-average vibration resistance, and is made for use in hydraulic systems, refrigeration systems, fuel and gas hookups, and more. Use with brass, bronze, copper, steel, aluminum, and iron pipe.
Specifications:
- Max PSI: 1200
- Temperature Range: -65°F to +250°F
- Hex: 0.50
- Length: 0.83"
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
