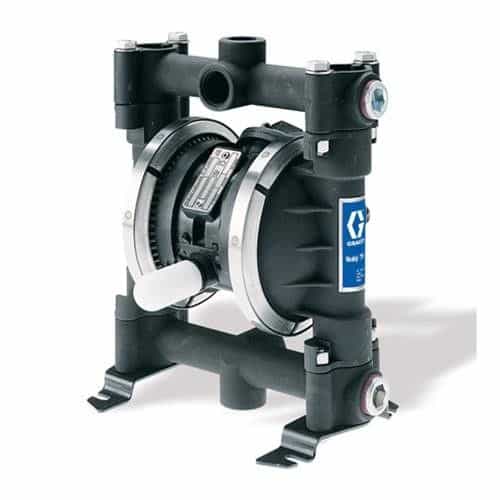

Husky 716 Transfer Pump

The Graco Husky 716 double diaphragm pump is engineered to reliably handle fluid transfer applications involving oil, water, antifreeze, and windshield washer fluid. Inside the pump are no mechanical seals which prevent leaks and failures. Runs under 85dBa with muffler capability to reduce noise even more. Air valve and ball checks are easy to service so repairs are fast. The Graco Husky 716 provides a maximum flow rate of 16 GPM.

Specifications:

• Air Exhaust Port Size (in): 3/8
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 1/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Application: Industrial
• Ball Material: Buna-N
• Compatible Material: Oil, Water, Antifreeze, Windshield Washer Fluid
• Connection Type: Threaded
• Diaphragm Material: Buna-N
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT
• Fluid Outlet Size (in): 3/4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Material: Aluminum
• For Use With:  Oil, Water, Anti-freeze, Washer Fluid, Used Oil
• Manifold O-Ring Material: PTFE
• Material: Aluminum
• Maximum Air Consumption (SCFM): 28
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100
• Maximum Cycle Rate (CPM): 400
• Maximum Flow Rate (GPM): 16
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Operating Temperature (°F): 180
• Maximum Solid Size (in): 0.09375
• Overall Height (in): 10.43
• Power Source: Air
• Standards Met: CE
• Type: Pneumatic Diaphragm Pump
• Weight (lb.): 8.5
• Wetted Material: Aluminum, Buna-N, PTFE

Product Features:

• External controller for remote control capabilities
• Center and end porting options
• No mechanical seals to eliminate fluid leaks and other failures
• Runs quietly at less than 85 dBa
• Muffler capability for even lower noise levels
• Easy-to-service air valve and ball checks
• 3/4 in (19.05 mm) center- and end-porting

Graco Husky 716 Troubleshooting

Pump will not cycle, or cycles once and stops

• Air valve is stuck or dirty
  • Use filtered air

Pump cycles at stall or fails to hold pressure at stall

• Leaky check valves or O-rings
  • Replace
• Worn check balls or duckbill valves or guides
  • Replace
• Check ball wedged in the guide
  • Repair or replace
• Worn diaphragm shaft seals
  • Replace

Pump operates erratically

• Clogged suction line
  • Inspect; clear
• Sticky or leaking check valve balls
  • Clean or replace
• Diaphragm ruptured
  • Replace

Air bubbles in fluid

• Suction line is loose
  • Tighten
• Diaphragm ruptured
  • Replace
• Loose manifolds or damaged manifold o-rings
  • Tighten manifold bolts or nuts; replace o-rings
• Loose fluid side diaphragm plates
  • Tighten

Fluid in exhaust air

• Diaphragm ruptured
  • Replace
• Loose fluid side diaphragm plates
  • Tighten
• Worn diaphragm shaft seals
  • Replace

Pump exhausts air from clamps (metal pumps)

• Loose clamps
  • Tighten clamp nuts
• Air valve o-ring is damaged
  • Inspect; replace

Pump leaks fluid from check valves

• Worn or damaged check valve o-rings
  • Inspect; replace
