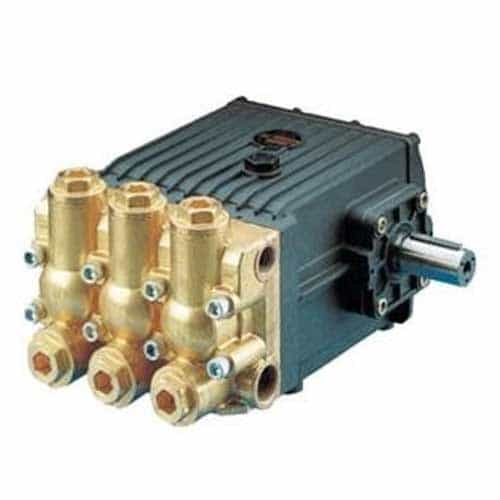

General Pump CW1012 69 Series Car Wash Right Solid Shaft Triplex Plunger Pump - 12.0 GPM, 1000 PSI

Brand:
Mfr. Model #:
CW1012
KR Part #:
GPCW1012
Weight:
49.60 lbs
GTIN:
682491025504
Availability:
3
Low Stock Warning
MSRP
$5,087.75
Now Only!
$1,619.24
starstarstarstarstar (1)

General Pump CW Series 69 pumps are engineered and constructed to handle the rigorous duty cycles, high temperatures and chemicals associated with car wash applications.






Technical Specifications

Bore: 30 millimeter
Inlet Port: 3/4 inch
Max GPM: 12
Max PSI: 1000
Stroke: 24 millimeter
Shaft Diameter: 35 millimeter
RPM: 900
Max Temperature: 165 degrees F
Crankcase Capacity: 50.7 ounces

Product Description

Car Wash Grade Plunger Pump

The preferred pump frame in the two-gun prep conveyor and tunnel car wash industry, this model features a forged brass manifold, large-capacity, die-cast, anodized aluminum oil-bath crankcase, oversized connecting rods, a heavy-duty tapered roller bearing, and unitized stainless steel inlet and discharge valves. Solid ceramic plungers with continuously lubricated packings keep the system running smoothly and efficiently.
Dimensions: 13.0” x 11.9” x 7.3”
Specifications:
  • Max Flow: 12 GPM
  • Max Pressure: 1000 PSI
  • Max Speed:  900 RPM
  • Bore: 30 mm
  • Stroke: 24 mm
  • Max Fluid Temp: 165 degrees F
  • Crankcase Capacity: 50.7 oz.
  • Inlet: 3/4"
  • Outlet: 3/8"
  • Shaft Diameter: 35 mm
