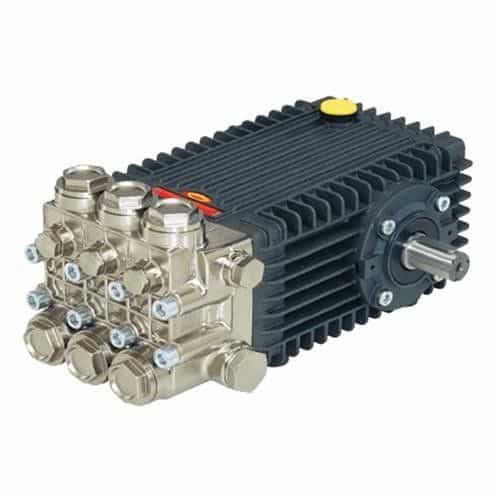

General Pump HTF2421SL HTF Series 66HT Pump - 12 GPM, 2500 PSI, Right Shaft

Brand:
Mfr. Model #:
HTF2421S
KR Part #:
GPHTF2421S
Weight:
41.00 lbs
GTIN:
682491120216
Availability:
1
Low Stock Warning
MSRP
$4,586.00
Now Only!
$1,565.95
starstarstarstarstar (0)
Pump excels when used in prep units, conveyor, multiple gun applications, carpet cleaning and in systems where hot water is required. Engineered to perform at temperatures up to 185 degrees F. Emperor pumps are able to run dry for hours.



Technical Specifications

Bore: 24 millimeter
Crankcase Capacity: 40.6 ounce
Inlet Port: 3/4 inch
Max GPM: 12
Max PSI: 2500
Max Temperature: 185 degrees F
RPM: 1750
Shaft Diameter: 24 millimeter
Stroke: 21 millimeter

Product Description

HTF Series 66HT

General Pump Emperor Line pumps are engineered to perform at temperatures up to 185 degrees F. Component materials such as "high tech" packing, "high temp" valve design, nickel-plated manifolds and valve plugs are chosen for corrosion resistance and cavitation damage reduction. Due to the construction of the Emperor Line pumps, they are able to run dry for hours.


Features:

  • Patent-pending "high tech" packings
  • Dynamic low-pressure seal retainer
  • Superior low-pressure seal
  • Innovative intermediate ring
  • Superior high-pressure seal
  • Ceramic plungers
  • Patent-pending inlet/outlet valve cage
  • Nickel-plated inlet/outlet valve plugs
  • Nickel-plated forged brass manifold
  • Designed for carpet cleaning and for use in industrial plant systems where hot water is required

Specifications:

  • GPM: 12.0
  • PSI: 2500
  • RPM: 1750
  • Bore: .945 in./24 mm
  • Stroke: .826 in./21 mm
  • HP: 20.5 HP
  • Ship Weight: 1.0 lbs.
