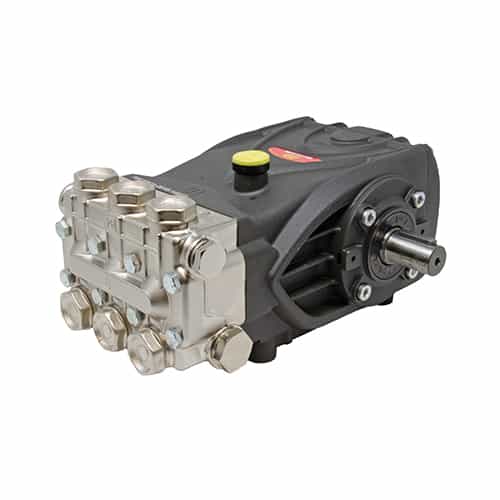

General Pump HTS2215S Emperor HTS Series 66 TSF Right Shaft Triplex Plunger Pump - 2300 PSI, 5 GPM

Brand:
Mfr. Model #:
HTS2215S
KR Part #:
GPHTS2215SR
Weight:
33.40 lbs
GTIN:
682491026143
Availability:
4
Low Stock Warning
MSRP
$2,482.46
Now Only!
$764.71
starstarstarstarstar (2)
This right shaft Emperor Pump in the HTS Series has heavy-duty tapered roller bearings and high-tech packings for long-lasting pump performance.



Technical Specifications

Bore: 22 millimeter
Crankcase Capacity: 40.6 ounce
Inlet Port: 1/2 inch
Max GPM: 5
Max PSI: 2300
Max Temperature: 185 degrees F
RPM: 1200
Shaft Diameter: 24 millimeter
Stroke: 15 millimeter

Product Description

HTS Series Emperor Pump - 5 GPM

The Triplex design makes this pump ideal for rigorous duty cycles, car washes and high-pressure cleaning applications. It can withstand high pressures up to 2300 PSI and pumps 5 gallons per minute. Both the inlet and outlet valve plugs are nickel-plated. The nickel-plated forged brass manifold is engineered to endure high temperatures and harsh chemicals.
Dimensions - Nominal:  12.4" x 10.0" x 6.9"
Specifications:
  • Maximum Volume: 5 GPM
  • Maximum Pressure: 2300 PSI
  • Maximum RPM: 1200 RPM
  • Maximum Inlet Pressure: 125 PSI
  • Minimum Inlet Pressure: 9 ft. water
  • Maximum Fluid Temperature: 185 degrees F
  • Bore: .866 in.
  • Stroke: .591 in.
  • Oil Capacity: 40.6 oz.
  • Inlet Port Thread: 1/2"
  • Discharge Port Thread: 3/8"
  • Shaft Diameter: 24 mm
  • Weight 32 lbs.
Features:
  • Patent-pending "high tech" packings with dynamic low-pressure seal retainers, superior low-pressure seals, innovative intermediate rings, and superior high-pressure seal
  • Ceramic plungers
  • Patent-pending inlet/outlet valve cage
  • Nickel-plated forged brass manifold
  • Heavy-duty tapered roller bearings

Product Reviews

2  Customer Review(s)
5 Star
1  (50%)
4 Star
0  (0%)
3 Star
0  (0%)
2 Star
0  (0%)
1 Star
1  (50%)

CID: -1 QueryString:general-pump-hts2215s-emperor-hts-series-66-tsf-right-shaft-triplex-plunger-pump-2300-psi-5-gpm| Runtime:falsep-9381.aspx/p-9381.aspxen-US2https://www.highpressurepumpsandparts.com/3/15/2025searchEngineName=general-pump-hts2215s-emperor-hts-series-66-tsf-right-shaft-triplex-plunger-pump-2300-psi-5-gpmcompunix.productreviews.xml.config102036516949TrueUSDTrue3.145.191.1150TrueFalse2:53 PM1FalseUSDTrueen-USFalse0en-US93811FalseFalseproduct| LastCustomerReview:
Ratingstarstarstarstarstar
I love this pump! I have had this on my carpet cleaning unit for over 3500 hours and not a single problem. Extremely durable!!
Reviewed by Scott  P
5/11/2019 10:28:11 PM
Ratingstarstarstarstarstar
These pumps do not hold up well. I have several wash locations and only one location has General pumps, the others have CAT pumps. In 15 years I have only had to change one CAT pump (which are very easy and inexpensive to rebuild your self). My location with General pumps seem to need pumps replaced every couple of years and it cost to much to rebuild them (special tool and sometimes still don't work after rebuild). The company does not offer any warranty past a year so you are stuck with them after you install them. I will also note that we change oil at all of our facilities every six month, which should be more than sufficient to maintain a good pump. We will likely change this location over to CAT's next year. If you have an option go with CAT pumps!
Reviewed by Craig  H
9/21/2017 10:01:58 PM
