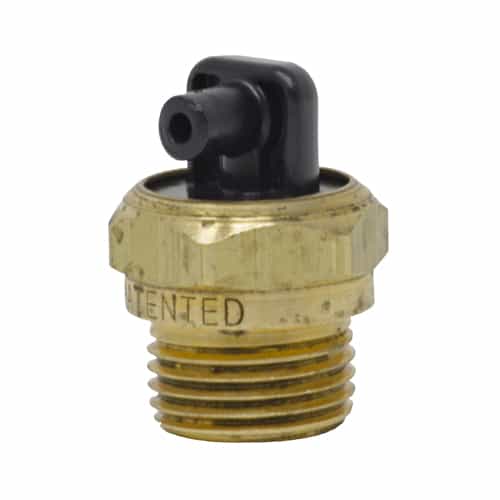

General Pump 100558 Brass Thermal Protector - 1/2 Inch NPT, 90 Degree 1/4 Inch Hose Barb, 145 Degree F

Brand:
Mfr. Model #:
100558
KR Part #:
GPP100558
Weight:
0.11 lbs
GTIN:
682491014423
In Stock
MSRP
$11.79
Now Only!
$4.53
starstarstarstarstar (0)
A thermal protector that prevents a pump from overheating. Relief temperature set at 145 degrees Fahrenheit. Features a 1/2" NPT connection and a 90 degree 1/4 inch hose barb.



Technical Specifications

Inlet Port: 1/2 inch
Outlet Port: 1/4 inch
Max Temperature: 145 degrees F

Product Description

1/2" NPT Thermal Protector

The General Pump 100558 is a thermal protector that is used to protect a pump from excessive heat it is in bypass mode. When the valve senses a rise in temperature it opens, releasing heated water. Cooler water enters the pump to prevent it from overheating. The relief temperature is set at 145 degrees Fahrenheit. Designed to easily mount to the pump's inlet, supply line, or bypass loop.

Specifications:
  • Inlet: 1/2" NPT
  • 90 Degree Hose Barb: 1/4"
  • Relief Temperature: 145° Fahrenheit
  • Dimensions: 1-1/2" H x 1" W
  • Materials: Brass, Buna, Delrin, Stainless Steel
  • Weight: 0.11 lbs
  • GTIN: 682491014423
Features:
  • Most consistent temperature range on the market
  • Quickest response to rising temperature
  • Less stress on pump
  • Most cost effective thermal protector in the market
  • Mounts easily in the pump inlet, supply lines or bypass loop
