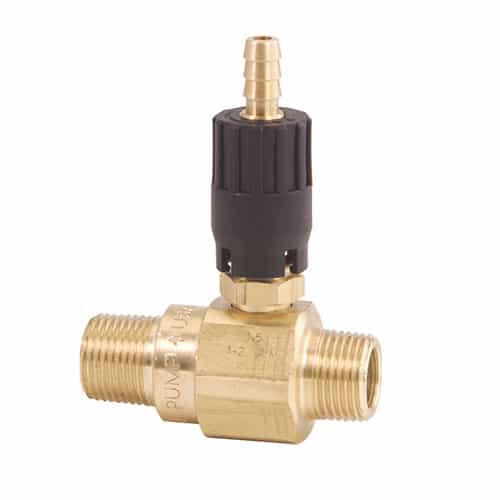

General Pump 100830 Adjustable High Draw Brass Chemical Injector with Acid Kit, 5-8 GPM

Brand:
Mfr. Model #:
100830
KR Part #:
GPP100830
Weight:
0.41 lbs
GTIN:
682491023487
In Stock
MSRP
$50.72
Now Only!
$19.19
starstarstarstarstar (0)
Brass-body chemical injector with adjustable hose barb. Up to 20% downstream chemical draw. Flow rate of 5.0 to 8.0 gallons per minute at up to 4500 PSI.



Technical Specifications

Max PSI: 4500
Max Temperature: 190 degrees F
Orifice: 2.3
Min GPM: 5
Max GPM: 8
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch

Product Description

Brass High Draw Chemical Injector with Acid Kit

General Pumps High Draw Fixed Chemical Injector Kit provides a flow rate of 5.0 to 8.0 GPM. High maximum pressure rating, useful for pressure washing, car wash, and other applications. Easy to integrate into current system through 3/8" male NPT inlet and outlet, with 1/4" adjustable hose barb. Includes acid kit.

Specifications

  • Flow Rate: 5.0 to 8.0 GPM
  • Max PSI: 4500
  • Max Temperature: 190°F
  • Inlet Port: 3/8" NPT-M
  • Outlet Port: 3/8" NPT-M
  • Hose Barb: 1/4", adjustable
  • Orifice Size: 2.3mm
