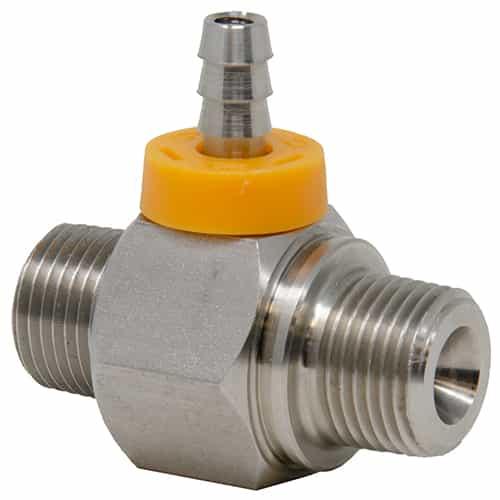

General Pump 100835OR Orange Hose Barb Stainless Steel Chemical Injector - .070 in. Orifice

Brand:
Mfr. Model #:
100835OR
KR Part #:
GPP100835
Weight:
0.20 lbs
GTIN:
682491124207
Availability:
4
Low Stock Warning
MSRP
$125.39
Now Only!
$47.45
starstarstarstarstar (0)

Stainless steel chemical injector with a Kynar hose barb chemical port. Features a maximum of 5500 PSI, 3 GPM, and 190 F operating temperature. Uses a stainless steel hose barb with a .070" orifice and an orange cap.

Made In The USA

Made In The USA




Technical Specifications

Orifice: .070 inch
Max GPM: 3
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Max GPM: 3 GPM
Max Temperature: 190 degrees F
Max PSI: 5500

Product Description

5500 PSI Chemical Injector

The General Pump 100835OR Chemical Injector is designed specifically for car wash applications. This stainless steel chemical injector has a flow rate of 2-3 GPM. Handles a maximum pressure of 5500 PSI, and a maximum liquid temperature of 190F. The hose barb on the injector is stainless steel and is denoted with an orange  cap.

Specifications:

  • 3/8" NPT-M inlet
  • 3/8" NPT-M discharge
  • Stainless steel hose barb with orange cap
  • 1/4" hose barb chemical port
  • .070" orifice for barb
  • Max Flow Rate: 2-3 GPM
  • Max PSI: 5500
  • Max Temperature: 190 F
  • Fixed design
  • Made in the U.S.A.
  • Weight: .4 lbs.
  • General Pump K320OR Repair Kit available for this injector
