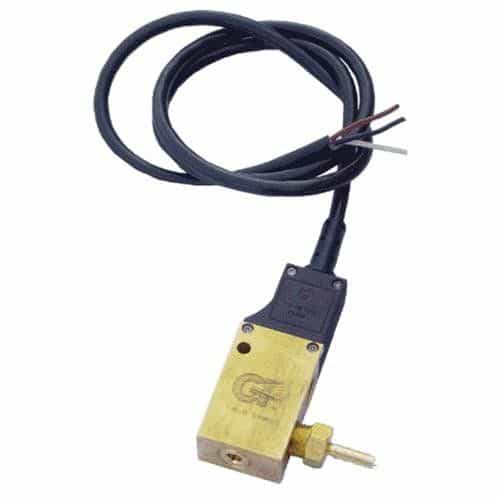

General Pump 100879 TMT Inline Flow Switch With Pilot Feature - 12 GPM, 4000 PSI

Brand:
Mfr. Model #:
100879
KR Part #:
GPP100879
Weight:
1.46 lbs
GTIN:
682491009412
Availability:
2
Low Stock Warning
MSRP
$301.37
Now Only!
$115.60
starstarstarstarstar (0)

A flow switch with pilot feature that activates with as little as .5 gpm flow. For vertical mounting in tanks and reservoirs.




Technical Specifications

Max PSI: 4000
Max GPM: 12
Max Temperature: 180 degrees F
Min Temperature: 40 degrees F
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Amps: 5
Voltage AC: 250

Product Description

Inline Flow Switch

This micro-switch technology eliminates the need for a reed switch. Mounts in your tank in a vertical position, the switch activates with just .5 gpm flow. Minimal pressure drop up to 12 gpm flow. If you use a downstream chemical injector, it should be mounted on the output side of the flow switch.
Specifications:
  • Maximum Operating Pressure: 4000 PSI
  • Minimum Flow Required for Activation: 0.5 GPM @ 50 PSI
  • Maximum Operating Flow: 12.0 GPM
  • Operating Temperature Range: 40 - 180 °F
  • Electrical Lead Length: 48" - 18AWG
  • Max Switching Voltage: 250 VAC
  • Max Switching Current: 5 AMPS
  • Resistance with Leads: 30 OHM
  • Electrical Service Life: 200,000 Cycles
  • Mechanical Service Life: 10,000,000 Cycles
  • Inlet: 3/8" x 18 NPT-F
  • Outlet: 3/8" x 18 NPT-F
  • Pilot: 1/4" Hose Barb
  • Dimensions: 4.1" x 1.6" x 1.0"
  • Weight: 1.3 LBS
  • Materials: Buna-N, Brass, Plastic, Nickel Plated Neodymium
