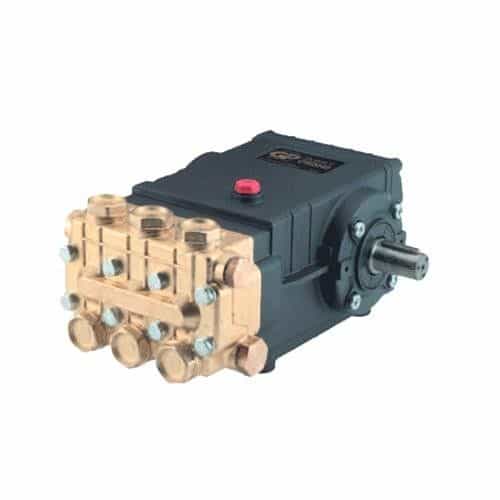

General Pump TS1711 Pressure Wash Plunger Pump T Series 47 - 3.5 GPM, 2700 PSI, 1450 RPM

Brand:
Mfr. Model #:
TS1711
KR Part #:
GPTS1711
Weight:
32.00 lbs
GTIN:
682491120056
Call For Availability
MSRP
$1,556.82
Now Only!
$531.60
starstarstarstarstar (0)
Pump frame is preferred in the pressure cleaning industry. Crankcase oil capacity reaches 37.2 ounces. Continuously lubricated packings.



Technical Specifications

Bore: 20 millimeter
Inlet Port: 1/2 inch
Max GPM: 3.5
Max PSI: 2700
Max Temperature: 165 degrees F
RPM: 1450
Shaft Diameter: 24 millimeter
Stroke: 10 millimeter
Crankcase Capacity: 37.2 ounce

Product Description

3.5 GPM Pressure Cleaning Pump

Part of the 47 Series, this is the preferred pump frame in the pressure cleaning industry. Forged brass manifold with solid ceramic plungers and continuously lubricated packings keep the pump functioning efficiently. High-capacity oil-bath crankcase is made with die-cast, anodized aluminum and has a capacity of 37.2 ounces of oil.


Specifications:

  • GPM: 3.5
  • PSI: 2700
  • RPM: 1450
  • Bore: .787 in./20 mm
  • Stroke: .394 in./10 mm
  • HP: 6.5 EBHP
  • Maximum Inlet Pressure: 125 PSI
  • Maximum Inlet Vacuum: 9 ft. water (7.9 in. Hg)
  • Plunger Bore: .787 in. / 20 mm
  • Plunger Stroke: .394 in. / 10 m
  • Crankcase Oil Capacity: 37.2 oz.
  • Maximum Fluid Temperature: 165°F
  • Inlet Port Thread: 1/2-14 BSPP-F
  • Discharge Port Thread: 3/8-19 BSPP-F
  • Shaft Diameter: .945 in. / 24 mm
  • Weight: 32 lbs.
  • Dimensions: 12.6" x 9.2" x 6.9"

Features:

  • The preferred pressure cleaning industry pump frame
  • Forged brass manifold
  • High-capacity, die-cast, anodized aluminum oil-bath crankcase
  • Solid ceramic plungers with continuously lubricated packings
  • Unitized stainless steel inlet and discharge valves
  • Over-sized connecting rods
  • Heavy-duty tapered roller bearing
